Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

227V-EFI • Pump Assembly

2019

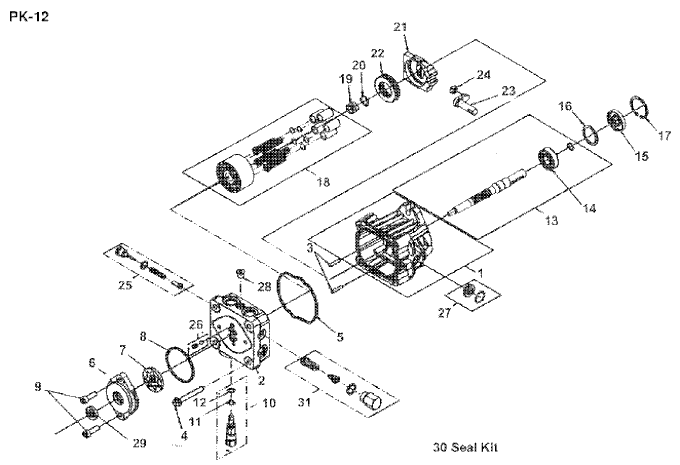

Pump Breakdown Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing Kit

130052

-

PK/PG Cradle Bearing

130009

2

End Cap Kit

130037

3

Dowel Pin

130046

4

Housing Bolt

271075

5

Molded Seal Ring

130181

6

Charge Pump Cover

130022

7

Gerotor Set

130062

8

Charge Cover Square Seal Ring

130020

9

Hex Bolt

243205

10

Bypass Valve (NOT AVAILABLE)

000000

11

Backup Ring

130017

12

Bypass Valve O-Ring

130018

13

Shaft and Bearing Kit W/ Thru Shaft

130174

14

Input Bearing

130078

15

Input Seal

125365

16

Spacer

130087

17

Retaining Ring

130090

18

Block Kit

130153

19

Block Spring

130014

20

Block Thrust Washer

130218

21

Swashplate

130182

22

Thrust Bearing

130013

23

Trunnion Arm

130036

24

Guide Block

130065

25

Check Valve Kit

130156

-

Check Plug O-Ring

130031

26

Charge Relief Kit

130019

27

Trunnion Seal Kit

125355

28

Straight Thread Plug

103739

29

Block Kit

125164

30

Thrust Bearing

130175

31

Shock Valve Kit

130160

Return to 227V-EFI Index Return to Top
