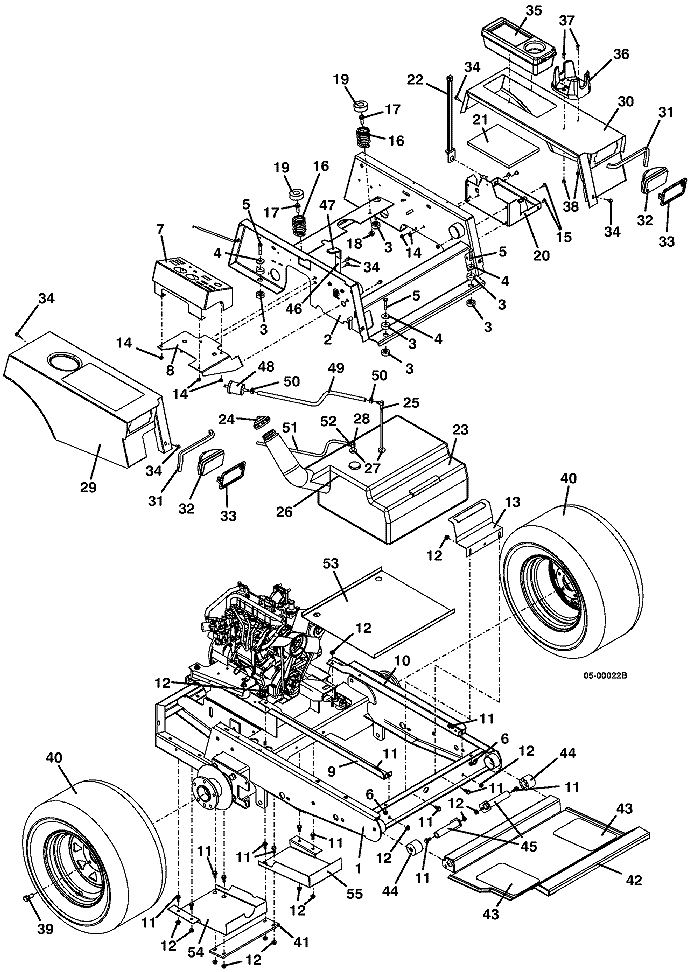

321D • Tractor Assembly
2002
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Lower Frame - M1 Kubota |
644247 |
2 |
Upper Frame - M1 Kubota |
644248 |
3 |
Step Bushing |
257037 |
4 |
Washer |
774020 |
5 |
Hex Bolt .312-18 x 1.750 |
243220 |
6 |
Nylon Insert Nut .312-18 |
253450 |
7 |
Console 300S M1 |
644139 |
8 |
Console Mount - 300 Console |
644141 |
9 |
Tank Rail - right 300S |
754068 |
10 |
Tank Rail - left 300S |
754069 |
11 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
12 |
Whiz Nut |
253035 |
13 |
Tank Bracket |
723091 |
14 |
Whiz Nut .250-20 |
253025 |
15 |
Truss Whiz Bolt .250-.20 x .500 |
253176 |
16 |
Compression Spring |
283516 |
17 |
Whiz Flange Bolt .375-16 x 1 |
253203 |
18 |
Whiz Nut .375-16 |
253043 |
19 |
Seat Spring Cap |
422127 |
20 |
Battery Box with Strap |
644108 |
21 |
Battery Tray Pad |
427275 |
22 |
Battery Hold-down Strap |
604785 |
23 |
M1 Diesel Tank Assembly |
604801 |
24 |
Screw-on Diesel Fuel Tank Cap |
100211 |
25 |
Fuel Tube |
101815 |
26 |
In-Tank Fuel Gauge |
141140 |
- |
Grommet - Fuel Gauge Mount |
424275 |
27 |
Fuel Tube Bushing |
101875 |
28 |
Fuel Return Tube |
101813 |
29 |
M1 Fender - right |
644265 |
- |
321D Trim Decal - right |
163264 |
30 |
M1 Kubota Fender - left |
644266 |
- |
321D Trim Decal - left |
163265 |
31 |
Fender Edge Trim 700/900 |
822635 |
32 |
Worklamp (Flood) |
182253 |
33 |
Snap-Mount Worklamp Bezel |
182251 |
34 |
Hex Whiz Bolt .250-20 x .500 |
253173 |
35 |
Tool Box |
422040 |
36 |
Cup Holder |
150225 |
37 |
Cap Screw |
259030 |
38 |
Nut .250-20 |
254436 |
39 |
Lug Bolt .500 x .875 |
248565 |
40 |
Wheel & Tire 24 x 12 x 12 |
483965 |
- |
Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks) |
483440 |
- |
Turf Tire 24 x 12 x 12 |
482486 |
- |
Wheel & Tire 23 x 10.5 x 12 |
483960 |
- |
Wheel Only 12 x 8.5 x 5.750 (for 52" Decks) |
483445 |
- |
Turf Tire 23 x 10.5 x 12 |
482485 |
- |
Bar Tread 12" Wheel & Tire (right) |
483968 |
- |
Bar Tread 12" Wheel & Tire (left) |
483969 |
- |
Bar Tread Tire Only 24 x 12 |
482487 |
41 |
Belt Guard Strap |
783277 |
42 |
M1 On-Frame Foot Rest |
644256 |
- |
LC M1-52/61 Footrest |
644269 |
43 |
Foot Rest Tread |
420902 |
- |
Foot Rest Tread |
420905 |
44 |
Seat Isolator |
424095 |
45 |
Seat Hinge Pin |
644618 |
46 |
Throttle Assembly - 321D |
604824 |
- |
Throttle Control Cable |
323629 |
- |
Throttle Lever Stop |
722009 |
47 |
Handle Grip |
422150 |
48 |
Kubota Fuel Prefilter |
101005 |
49 |
Fuel Line Hose 300S |
821717 |
50 |
Hose Clamp |
280270 |
51 |
300S Fuel Line Hose |
821741 |
52 |
Spring Hose Clamp |
280260 |
53 |
M1 Tank Shield |
722495 |
54 |
300 Hydro Debris Shield - right |
723050 |
55 |
300 Hydro Debris Shield - right |
723051 |
56 |
Decal Set - 321D |
604305 |
