Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

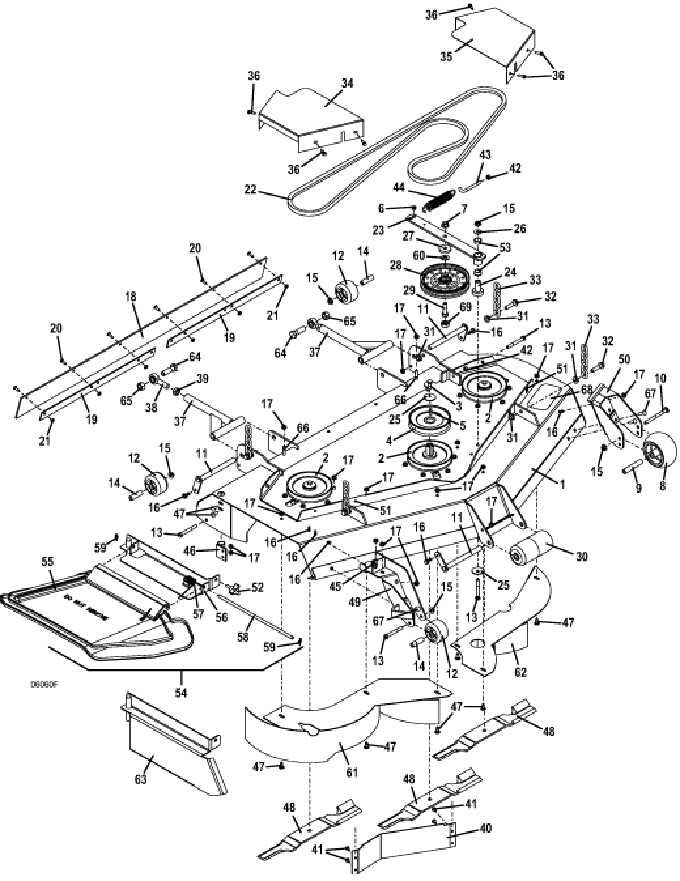

321D • Deck Assembly - M152

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M152 Deck Weldment

644159

2

Sheave

415892

3

Hex Bolt

243331

4

Sheave

415897

5

Square Key

281582

6

Nylon Bearing

422520

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Wheel 5 x 2.75

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller 3 x 2"

426122

13

Hex Bolt .375-16 x 3

243365

14

Roller Mount Spacer

902284

15

Whiz Nut .375-16

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 52" Deck Flap

424205

19

M1 52-9861 RT Deflector Strap

774280

20

Phil Truss Whiz Bolt

253179

21

Whiz Nut .250-20

253025

22

Belt

382082

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing .750 x 1.5

121650

25

Cupped Washer

257041

26

Washer

257040

27

Retainer Washer .531 x 1.625

883804

28

Idler

393250

29

Hex Bolt

243575

30

2 Piece Center Roller Assembly

603725

31

Whiz Nut

253058

32

GR 8 Hex Bolt

243458

33

Chain - 5 Links M1

820331

34

right Belt Shield 52/220

722333

35

left Belt Shield 52/220

722334

36

Hex Whiz Bolt .25-20 x .75

253175

37

Radius Arm Assembly - M1 300

604676

38

Rod End

265665

39

Nut .625-18

254493

40

M1/3452 Aux Front Shroud

724588

41

Truss Whiz Bolt

253176

42

Nut .375-16

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speed Nut

254448

46

Pivot Mount

643632

47

Carriage Bolt .312 x .75

247130

48

High Lift Notch Blade - 18"

320239

-

Medium Lift Blade - 18"

320236

-

Contour Blade - 18"

320238

-

High-Low Mulch Blade - 18"

320240

-

Extreme High Lift Blade - 18"

320241

48

Laser Edge High Lift Blade - 18"

320317

-

Shredder Blade - 18"

320321

49

M152 Anti-Scalp Roller Mount - right

645578

50

Anti-Scalp Roller Mount - left

645579

51

Speed Nut .250-20

254431

52

3 Prong HD Deck Stud

252821

53

Oilite Bearing

121756

54

Flex Discharge Shield Assembly

604317

55

Flex Discharge Shield

422042

56

Flex Discharge Shield Mount

644570

57

Torsion Spring

284406

58

Flex Discharge Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062

61

Mulch Plate - right

644608

62

Mulch Plate - left

644609

63

Mulch End Cap

644058

64

Hex Bolt

243810

65

Lock Nut

253970

66

Hex Flange Whiz Bolt

253195

67

Carriage Bolt

247135

68

Step Tread

420901

69

Idler Arm Stabilizer Cap

423670
