Genuine OEM Grasshopper® Mower Parts Diagrams

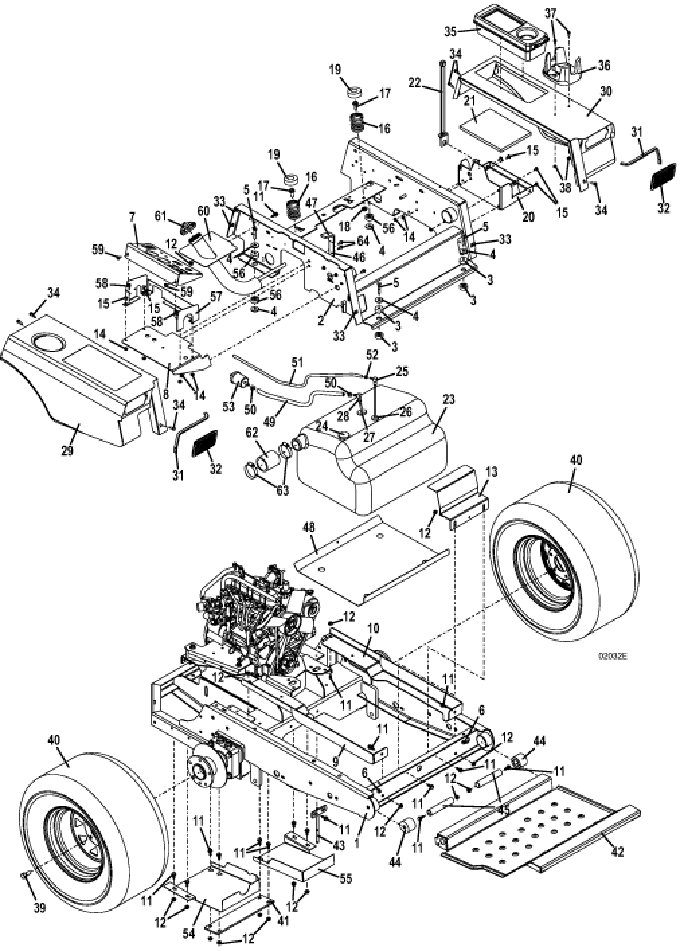

321D • Tractor Assembly
2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
300M1 Front Port Lower Frame - |
644282 |
2 |
300/400 Upper Frame |
644434 |
3 |
Step Bushing |
257037 |
4 |
Washer |
774020 |
5 |
Hex Bolt .312-18 x 1.750 |
243220 |
6 |
Nylon Insert Nut .312-18 |
253450 |
7 |
Liquid Cooled Console w/Decal - Diesel |
693109 |
8 |
M1 Console Mount |
645140 |
9 |
Tank Rail - Right 300/400 |
645802 |
10 |
Tank Rail - Left 300/400 |
645803 |
11 |
Hex Flange Whiz Bolt .312-18 x .75 |
253192 |
12 |
Whiz Nut |
253035 |
13 |
300/400 Front Tank Bracket |
723042 |
14 |
Whiz Nut .250-20 |
253025 |
15 |
Truss Whiz Bolt .250-.20 x .500 |
253176 |
16 |
Compression Spring |
283516 |
17 |
Whiz Flange Bolt .375-16 x 1 |
253203 |
18 |
Whiz Nut .375-16 |
253043 |
19 |
Seat Spring Cap |
422127 |
20 |
Battery Box with Strap |
644108 |
21 |
Battery Tray Pad |
427275 |
22 |
Battery Hold-down Strap |
604785 |
23 |
M1 Diesel .312 Tank Assembly |
605800 |
24 |
Intank Fuel Gauge |
141142 |
- |
Grommet - Fuel Gauge Mount |
424275 |
25 |
Fuel Tube |
363929 |
26 |
Fuel Tube Bushing |
101875 |
27 |
Diesel Draw Tube Bushing |
101876 |
28 |
Fuel Tube |
363923 |
29 |
300 Rt Fender w/Decals |
693224 |
30 |
300 Lt Fender w/Decals |
693225 |
31 |
Fender Edge Trim |
822632 |
32 |
Plug for Worklamp Hole |
422079 |
33 |
Speed Nut |
254431 |
34 |
Hex Whiz Bolt |
253175 |
35 |
Tool Box |
422040 |
36 |
Cup Holder |
150225 |
37 |
Cap Screw |
259030 |
38 |
Nut |
254436 |
39 |
Lug Bolt .500 x .875 |
248565 |
40 |
Wheel & Tire Turf |
483950 |
- |
Turf Tire 23 x 10.5 x 12 |
482485 |
- |
Turf Tire 23 x 9.5 x 12 |
482488 |
- |
Wheel |
483435 |
- |
Wheel Only 12 x 8.5 x 5.750 (for 52" Decks) |
483445 |
- |
Wheel & Tire Turf |
483955 |
- |
Wheel & Tire Turf |
483960 |
41 |
Belt Guard Strap |
783277 |
42 |
M1 Footrest on Frame |
644256 |
43 |
M1 Deck Belt - Belt Guide |
645005 |
44 |
Seat Isolator |
424095 |
45 |
Seat Hinge Pin |
644618 |
46 |
Throttle Assembly - 321D |
603858 |
- |
Throttle Control Cable |
323656 |
- |
Throttle Lever Stop |
722009 |
- |
Heavy Duty Throttle Stop |
722736 |
47 |
Handle Grip |
422150 |
48 |
M1 Fuel Tank Shield |
722949 |
49 |
Fuel Line Hose 428D |
821718 |
50 |
Spring Hose Clamp |
280261 |
51 |
430D Fuel Return Hose |
821744 |
52 |
Spring Hose Clamp |
280257 |
53 |
Prefilter Kubota Fuel Filter |
101005 |
54 |
300 Hydro Debris Shield - right |
723050 |
55 |
300 Hydro Debris Shield - right |
723051 |
56 |
Step Bushing |
257038 |
57 |
300/400 Console Mt Frame |
722933 |
58 |
Plastic Retainer Nut |
254432 |
59 |
Bolt |
253180 |
60 |
300/400 Fuel Filler |
644887 |
61 |
Screw-On Diesel Fuel Cap |
100211 |
62 |
Fuel Tank Filler Hose |
422027 |
63 |
Screw Type Hose Clamp |
280305 |
64 |
Hex Whiz Bolt |
253173 |
65 |
321D Decal Set |
605523 |
