Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

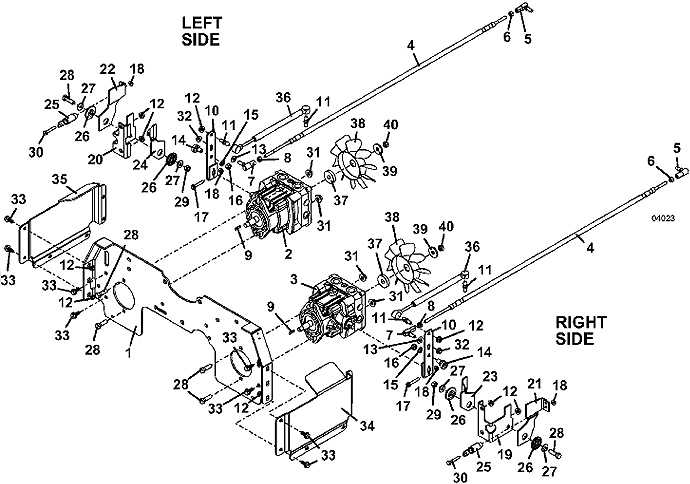

322D • Drive Assembly (continued)

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

left Hydro Pump

391462

3

right Hydro Pump with Shaft

391463

4

322D Steering Linkage Rod

604529

5

Righthand Thread Ball Joint

265615

6

Nut

254441

7

Lefthand Thread Ball Joint

265616

8

Nut

254444

9

Square Key

281562

10

right Pump Control Arm

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

Star External Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Whiz Nut

253025

19

M1 right Neutral Return Mount

754128

20

M1 left Neutral Return Mount

754129

21

front right Neutral Return Arm

729136

22

front left Neutral Return Arm

729137

23

right Neutral Return Arm

729138

24

left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Hex Bolt

243035

31

Whiz Nut

253043

32

Whiz Nut

253038

33

Hex Flange Whiz Bolt

253192

34

322 Series right Reinforcement Plate

729501

35

322 Series left Reinforcement Plate

729502

36

Damper

285031

37

10A Fan Mount Hub

885123

38

7" Nylon Fan

320857

39

Washer

774020

40

Nut

254452
