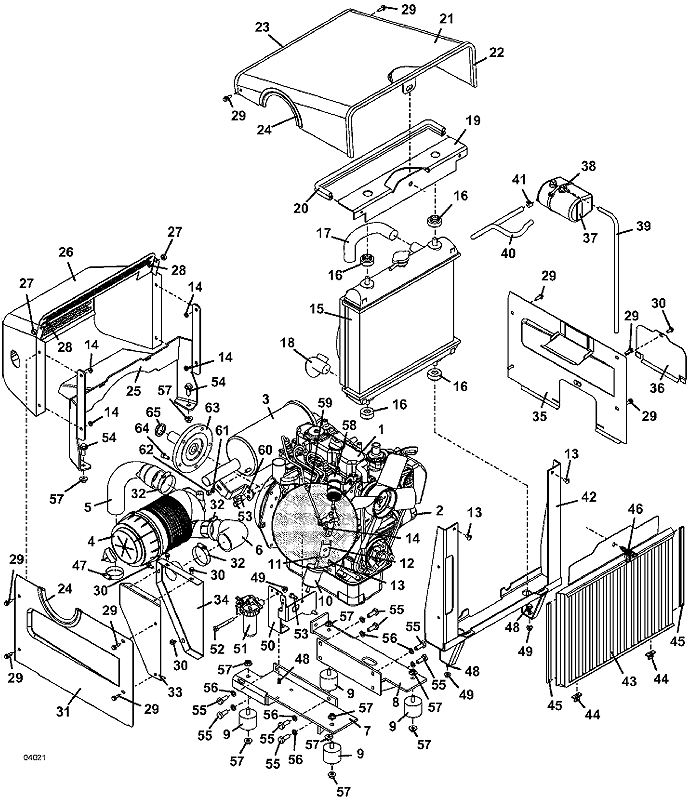

322D Engine Assembly - 2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 100177 - Kubota Diesel Engine | Call For Details | |
| 2 | 100800 - Kubota Oil Filter | Add To Cart | |
| 3 | 101235 - Kubota 902 Muffler | Add To Cart | |
| - | 101039 - 902 Muffler Gasket | Add To Cart | |
| 4 | 100207 - Nelson 90 degree Air Cleaner | Call For Details | |
| - | 100197 - Clip for Air Cleaner Cover | Add To Cart | |
| - | 100199 - Air Cleaner Cover | Add To Cart | |
| - | 100202 - Dust Ejector | Call For Details | |
| - | 100203 - Kohler Rain Cap | Call For Details | |
| - | 100936 - Outer HD Air Filter | Add To Cart | |
| - | 100937 - Inner HD Air Filter | Call For Details | |
| 5 | 424526 - Breather/Manifold Hose | Add To Cart | |
| 6 | 424520 - Breather Inlet Hose | Add To Cart | |
| 7 | 644286 - 920D right Engine Mount | Call For Details | |
| 8 | 644287 - 920D left Engine Mount | Add To Cart | |
| 9 | 424078 - Vibration Isolator | Add To Cart | |
| 10 | 101005 - Kubota Fuel PreFilter | Call For Details | |
| 11 | 280261 - Spring Hose Clamp | Add To Cart | |
| 12 | 723063 - 928 Linkage Extension | Add To Cart | |
| 13 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 14 | 253025 - Whiz Nut | Add To Cart | |
| 15 | 101612 - Kubota Radiator | Call For Details | |
| 16 | 101080 - Radiator Mount Isolator Bushing | Call For Details | |
| 17 | 101058 - Upper Radiator Hose | Call For Details | |
| 18 | 101059 - Lower Radiator Hose | Call For Details | |
| 19 | 729327 - Radiator Channel Clamp | Add To Cart | |
| 20 | 822518 - Hood Bulb Seal | Add To Cart | |
| 21 | 644293 - Upper Hood | Add To Cart | |
| 22 | 822638 - Front Hood Trim | Add To Cart | |
| 23 | 822637 - Rear Hood Trim | Add To Cart | |
| 24 | 822513 - Air Cleaner Trim Seal | Add To Cart | |
| 25 | 644810 - rear Hood Support | Call For Details | |
| 26 | 644329 - 902D W/A Hood | Add To Cart | |
| 27 | 902297 - .25 THK Spacer | Add To Cart | |
| 28 | 253440 - Nylon Insert Nut | Add To Cart | |
| 29 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 30 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 31 | 722712 - right Hood Side | Add To Cart | |
| 32 | 280305 - Screw Type Hose Clamp | Add To Cart | |
| 33 | 644066 - Air Intake Box Mount | Call For Details | |
| 34 | 644059 - Air Intake Box | Add To Cart | |
| 35 | 644322 - 722D W/A left Hood Side | Add To Cart | |
| 36 | 722722 - Oil filter Cover | Add To Cart | |
| 37 | 422012 - Expansion Tank | Add To Cart | |
| 38 | 423154 - Tie | Add To Cart | |
| 39 | 821748 - Clear Vent Hose | Add To Cart | |
| 40 | 821749 - Hose | Add To Cart | |
| 41 | 280260 - Spring Hose Clamp | Add To Cart | |
| 42 | 644658 - 902 Lower Radiator Mount | Add To Cart | |
| 43 | 604382 - 722D Grille Assembly with Guard | Add To Cart | |
| 44 | 422090 - Rear Belt Isolator Shield | Add To Cart | |
| 45 | 822636 - Radiator Grille Trim | Add To Cart | |
| 46 | 281305 - Swell Action Latch | Add To Cart | |
| 47 | 280303 - Screw Type Hose Clamp | Add To Cart | |
| 48 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 49 | 253035 - Whiz Nut | Add To Cart | |
| 50 | 754198 - Fuel Filter Mount | Add To Cart | |
| 51 | 101000 - Kubota Fuel Filter | Call For Details | |
| 52 | 243240 - Hex Bolt | Add To Cart | |
| 53 | 271020 - 8M Hex Head Bolt | Add To Cart | |
| 54 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 55 | 271120 - Hex Bolt | Add To Cart | |
| 56 | 275580 - Lock Washer | Add To Cart | |
| 57 | 253043 - Whiz Nut | Add To Cart | |
| 58 | 101046 - Fuel Valve Solenoid | Add To Cart | |
| 59 | 246880 - Manual Stop Lever Extension | Add To Cart | |
| - | 422092 - Red Vinyl Cap | Add To Cart | |
| 60 | 732601 - Muffler Support Snap | Add To Cart | |
| 61 | 257402 - Lock Washer | Add To Cart | |
| 62 | 274145 - Hex Nut | Add To Cart | |
| 63 | 824637 - Clutch Stub Shaft | Add To Cart | |
| 64 | 270075 - M8 Socket Head Screw | Add To Cart | |
| 65 | 902583 - Spacer | Add To Cart |
