Genuine OEM Grasshopper® Mower Parts Diagrams

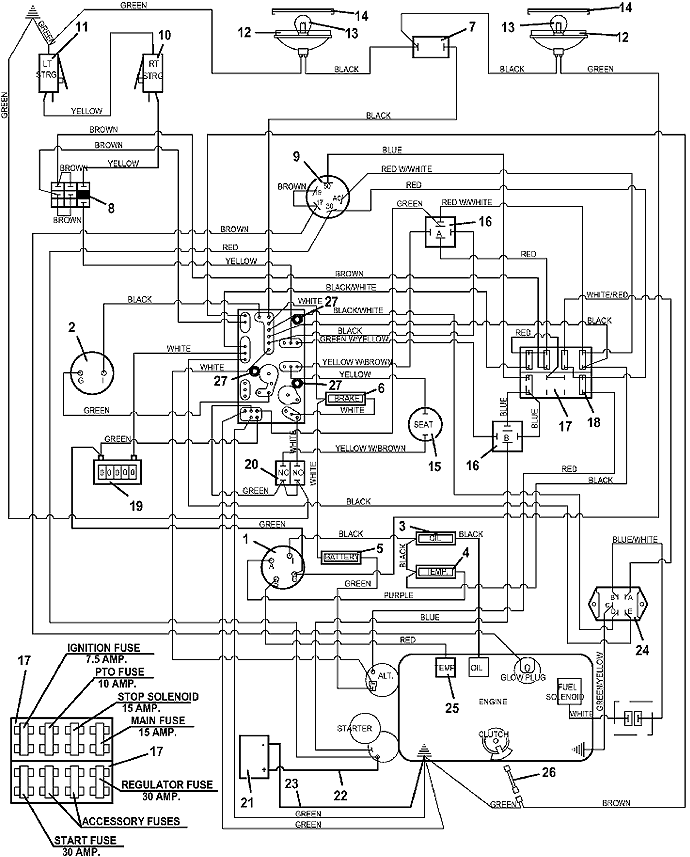

322D • Electrical Wiring
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Electric Zoned Temperature Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push / Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
- |
Kubota Double Notch Ignition Key |
101106 |
10 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
12 |
Flood Worklamp |
182253 |
13 |
Light Bulb for Worklamp |
182005 |
14 |
Snap-Mount Bezel for Worklamp |
182251 |
15 |
Seat Safety Switch |
183870 |
16 |
12 volt DC Relay |
184272 |
- |
Type 1 6mm Push-On |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Wire Fuse Clip |
184472 |
18 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 15 Amp Fuse |
181465 |
- |
Auto ATC 10 Amp Fuse |
181462 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
19 |
Snap-in Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
12 volt Side Post Wet Battery |
180130 |
- |
Hex Bolt |
243309 |
22 |
14" Red Battery Cable |
180313 |
- |
Red Alternator Terminal Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
23 |
20" Black Battery Cable |
180282 |
24 |
D902 Switch Interlock Module |
184217 |
25 |
Temperature Sender |
141222 |
26 |
Pigtail Cable Assembly |
388840 |
27 |
PC Board Support Spacer |
423690 |
28 |
322D/325D Wiring Assembly |
605923 |
29 |
M1 321D Console Decal |
161142 |
