Genuine OEM Grasshopper® Mower Parts Diagrams

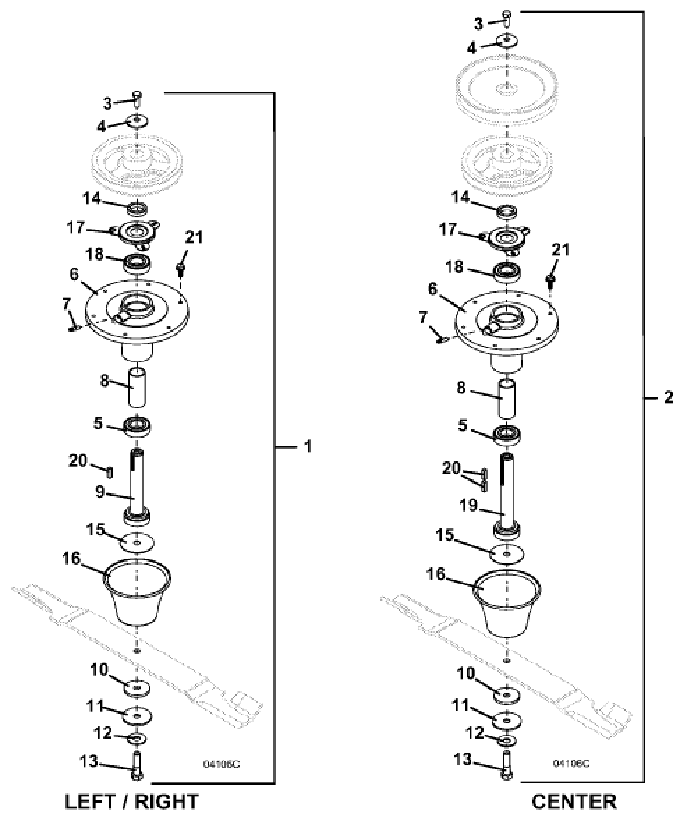

322D • Blade Spindle Assembly M172
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Lt & Rt M172 Blade Spindle Assembly |
623764 |
2 |
Ctr M172 Blade Spindle Assembly |
623765 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Single Seal Ball Bearing |
110082 |
6 |
Cast Spindle Housing |
824151 |
7 |
Zerk Grease Fitting |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
98S Spindle Shaft Assembly |
604774 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Hardened Blade Spindle Washer |
257057 |
13 |
Grade 8 Flange Hex Bolt |
243583 |
14 |
Spacer |
282607 |
15 |
Washer |
772061 |
16 |
Deflector Cone |
423680 |
17 |
Shield Bearing |
721167 |
18 |
25mm Double Metal Seal Ball Bearing |
110080 |
19 |
M1 Spindle Shaft Assembly |
604773 |
20 |
Square Key |
281582 |
21 |
Whiz Hex Flange Bolt |
253192 |
