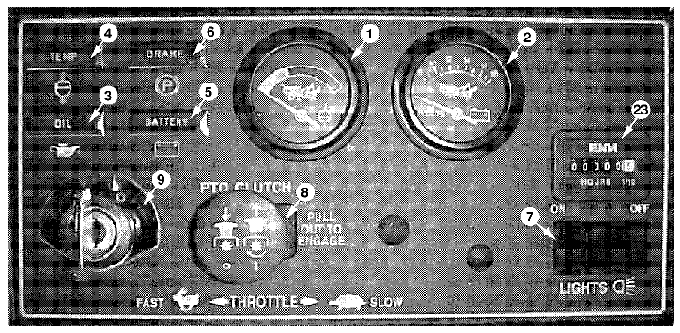

Genuine OEM Grasshopper® Mower Parts Diagrams
322D • Console
2008
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Electric Zoned Temp Gauge |
141160 |
2 |
Voltmeter Gauge |
141200 |
3 |
Oil Light Indicator |
182327 |
4 |
Temp Light Indicator |
182328 |
5 |
Battery Light Indicator |
182325 |
6 |
Brake Light Indicator |
182326 |
7 |
Rocker Switch |
184179 |
8 |
Push/Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
- |
Double Notch Kubota Key Ignition |
101106 |
20 |
Console Decal |
161142 |
23 |
Snap-In Hour Meter |
141551 |
