Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

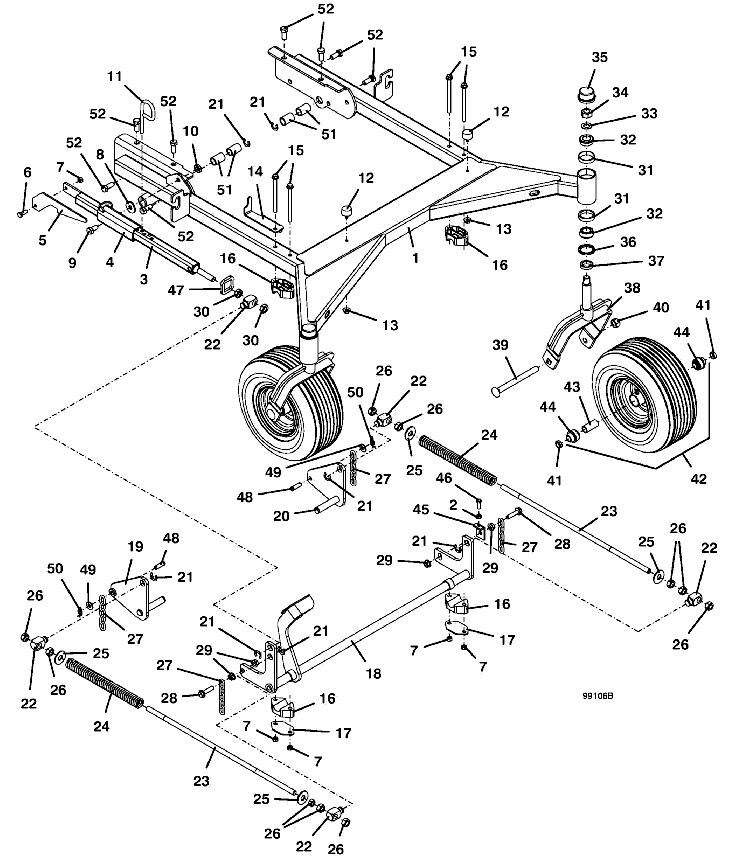

325 • Deck Carrier Assembly - M172

2000 & 2001

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier - M172

644135

2

Whiz Nut

253035

3

Height Adjustment Tube M1

644778

4

Latch Tube Guide

644305

5

Deck Latch

775104

6

Hex Bolt

243330

7

Lock Nut

253890

8

Nylon Washer

821516

9

Hex Bolt

243560

10

Nylon Insert Nut

253470

11

Height Adjustment Deck Pin

730434

12

Rubber Bumper

424052

13

Whiz Nut

253043

14

Cutting Height Indicator

754054

15

Flange Bolt

253215

16

Bearing Block - M1

423643

17

Lift Bearing Plate

774064

18

Lift Lever - M1 Deck

644524

19

Rear Deck Rocker - M1 right

644707

20

Rear Deck Rocker - M1 left

644708

21

External Retainer

263529

22

Spring Rod Shaft Mount

882035

23

Spring Shaft

780663

24

Compression Spring

283395

25

Washer

257080

26

Nut

254490

27

M1 Chain - 5 Links

820331

28

Hex Bolt GR 8

243458

29

Whiz Nut

253058

30

Nut

254493

31

Bearing Cup

123522

32

Taper Bearing

122522

33

14 GA Bushing Washer

257091

34

Lock Nut

253992

35

Dust Cap

481432

36

Seal

125855

37

Spacer

282615

38

Fork & Lock Nut Assembly

604365

39

Carriage Bolt

247725

40

Lock Nut

253970

41

Axle Spacer

902422

42

Rear Wheel Assembly with Bearings 13x6.5x6

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire / without Bearings 6 x 4.5

483306

43

Rear Axle Center Spacer

902429

44

DP Wheel Ball Bearing

120048

45

M1 Deck Adjusting Strap

732586

46

Hex Bolt

243205

47

M1 Height Adjustment Spacer

423696

48

Clevis Pin

261405

49

Washer

257051

50

Cotter Ring

260612

51

Oilite Bearing

121766

52

Hex Bolt

243565

-

Nut

254470

-

Lock Washer

257432
