Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

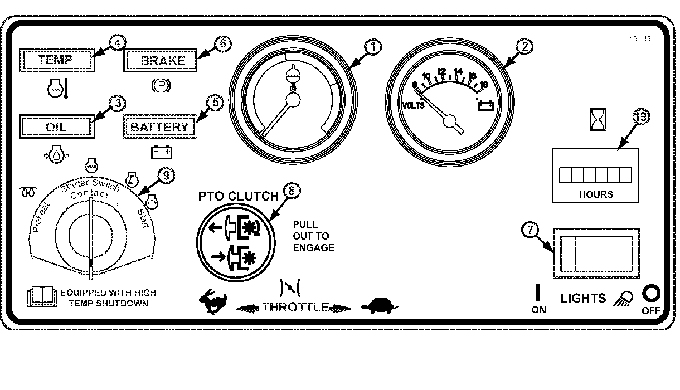

325D • Console

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Temp Zoned Electric Guage

141165

2

Guage Voltmeter

141203

3

Light Indicator - Oil

182327

4

Light Indicator - Temp

182328

5

Light Indicator - Battery

182325

6

Light Indicator - Brake

182326

7

Rocker Switch

184179

8

Push/Pull Switch

183925

9

Sealed Kubota Key Switch

183827

-

Double Notch Kubota Ignition Key

101106

19

Snap-in Hour Meter

141551

20

Console Decal

161116
