Genuine OEM Grasshopper® Mower Parts Diagrams

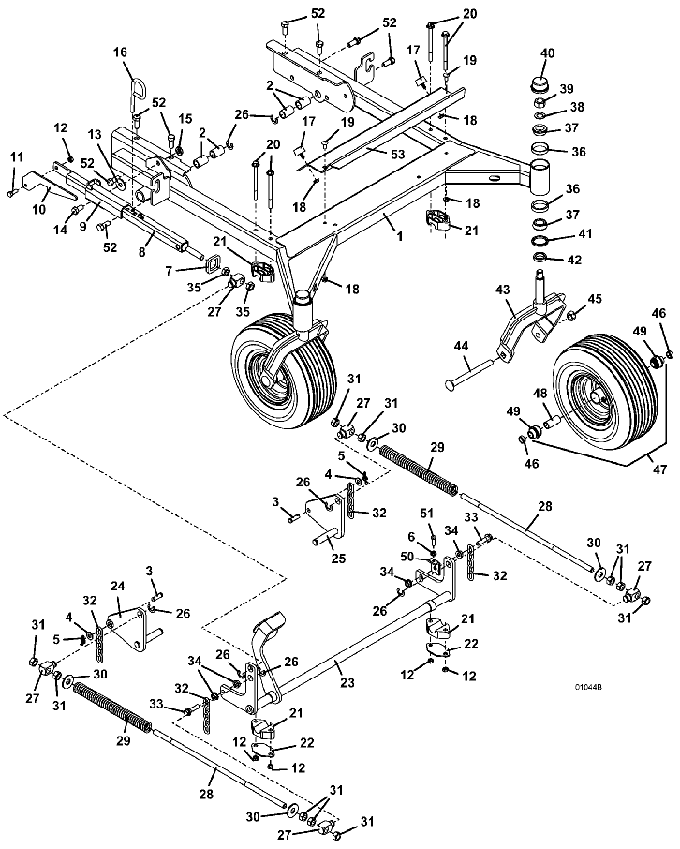

327A • Deck Carrier Assembly - M152 / M161
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
