Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

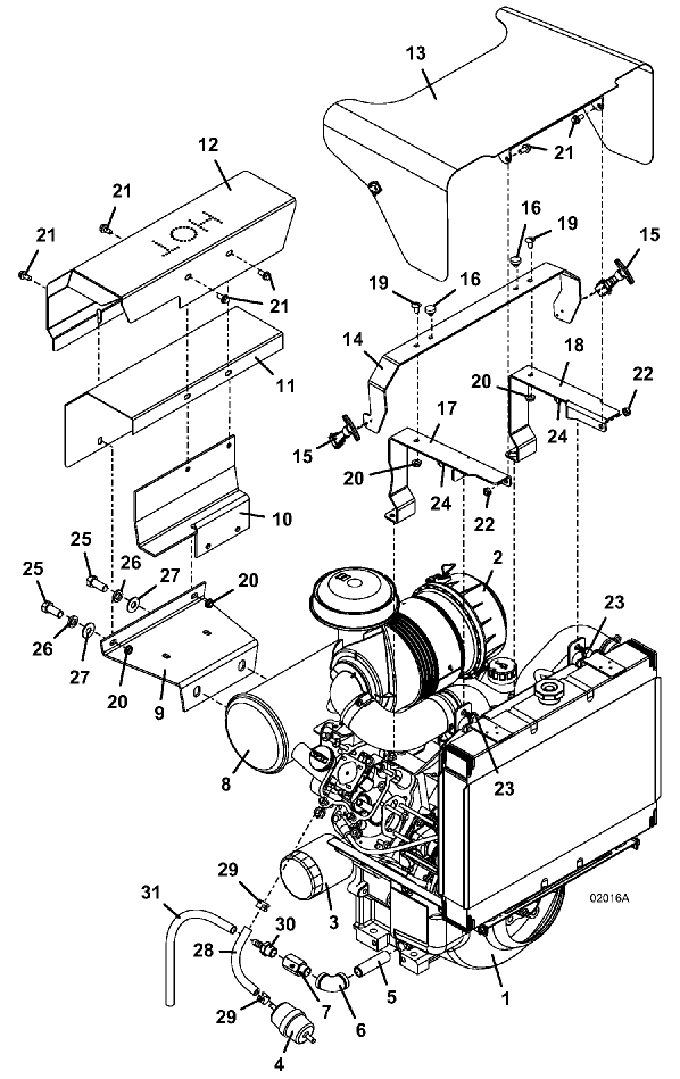

327A • Engine Assembly

2004

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

27HP Kohler Engine

100186

2

Outer Air Filter Heavy Duty

100936

-

Inner Air Filter Heavy Duty

100937

3

Kohler Oil Filter

100802

4

Kohler Fuel Filter

101001

5

Nipple

364518

6

Ell

362215

7

Oil Drain Valve

143610

8

Kohler Muffler

101217

-

Kohler Exhaust Gasket

101041

9

225 Lower Muffler Bracket

729312

10

Shield Mount Bracket

643117

11

Inner Panel Shield

722309

12

Muffler Shield

722391

13

Hood WC W/A

644324

14

Hood Hold Down Mount

754165

15

Rubber Draw Latch

281301

16

Rubber Bumper

424015

17

Right Hood Mount Bracket

754140

18

Left Hood Mount Bracket

754141

19

Truss Whiz Bolt

253176

20

Whiz Nut

253025

21

Hex Whiz Bolt

253173

22

Nylon Insert Nut

253440

23

Whiz Bolt

253189

24

Whiz Nut

253035

25

Hex Bolt

243445

26

Lock Washer

257422

27

Washer

257040

28

Fuel Hose

821710

29

Spring Hose Clamp

280260

30

Nylon Fitting

363854

31

Oil Drain Tube

821752
