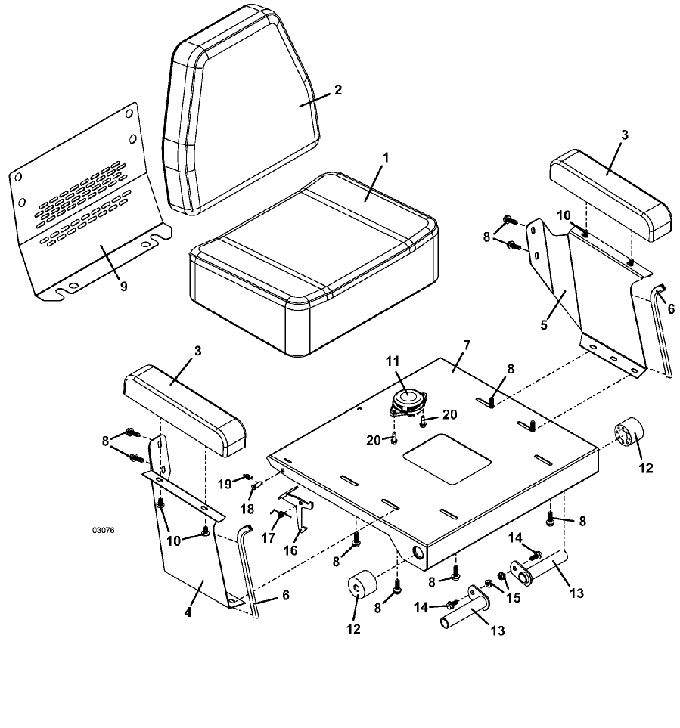

327A • Seat Assembly
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Formed Seat Cushion - Cordura |
321521 |
2 |
Back Cushion - Cordura |
321519 |
3 |
Seat Armrest - Contoured Cordura |
321523 |
4 |
Seat Side with Armrest Extension - right |
723386 |
5 |
Seat Side with Armrest Extension - left |
723387 |
6 |
Seat Edge Trim |
822630 |
7 |
M1 300S Seat Platform |
643931 |
8 |
Hex Flange Whiz Bolt |
253193 |
9 |
Seat Reinforcement Back Panel |
722388 |
10 |
Hex Flange Whiz Bolt .312 |
253191 |
11 |
Seat Switch |
183870 |
12 |
Seat Isolator |
424095 |
13 |
Seat Hinge Pin |
644618 |
14 |
Hex Flange Whiz Bolt |
253192 |
15 |
Whiz Nut |
253035 |
16 |
Seat Latch |
724112 |
17 |
Torsion Spring |
284408 |
18 |
Clevis Pin |
261280 |
19 |
Cotter Ring |
260606 |
20 |
Hex Whiz Bolt |
253175 |
