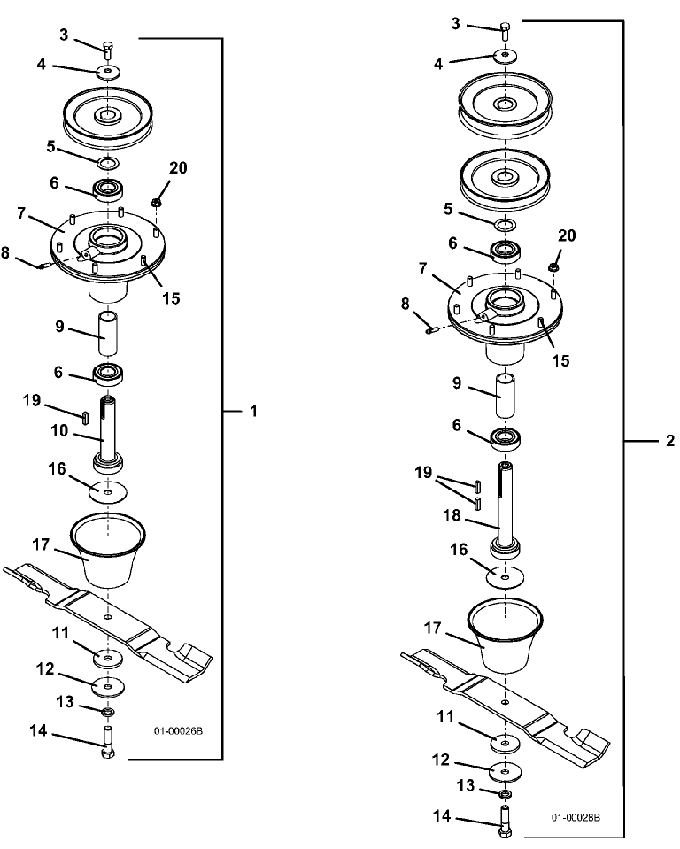

327a • Blade Spindle Assembly - M152 / M161
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Left & Right Spindle Assembly (includes items 3-17) |
623781 |
2 |
Center M1 Blade Spindle Assembly (includes items 3-9 and 11-18) |
623780 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Washer |
257106 |
6 |
Single Seal Ball Bearing |
110082 |
7 |
5.0 Spindle Housing Assembly |
604421 |
8 |
Zerk Grease Fitting |
280745 |
9 |
Deep Spindle Bearing Spacer |
903643 |
10 |
5.75 Spindle Shaft Assembly |
604775 |
11 |
Fiber Washer |
421200 |
12 |
Washer |
257061 |
13 |
Lock Washer |
257432 |
14 |
Grade 5 Hex Bolt |
243581 |
15 |
Round Head Ribbed Neck Bolt |
247141 |
16 |
Washer |
772061 |
17 |
Deflector Cone |
423680 |
18 |
M1 Spindle Shaft Assembly |
604773 |
19 |
Square Key |
281582 |
20 |
Whiz Nut |
253035 |
