Item # |
Description |
Part Number |
1 |

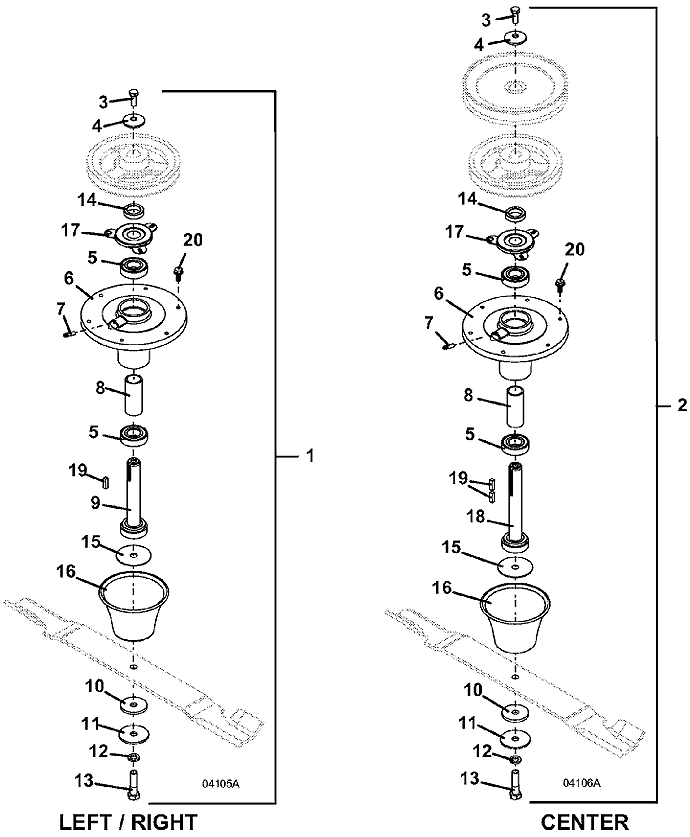

M172 left/right Spindle Assembly (includes items 3-17) |
623764 |
2 |
M172 center Spindle Assembly (includes items 3-9 and 11-18) |
623765 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Single Seal Ball Bearing |
110082 |
6 |
Cast Spindle Housing |
824151 |
7 |
Zerk Grease Fitting |
280745 |
8 |
Deep Spindle Bearing Spacer |
903643 |
9 |
98S Spindle Shaft Assembly |
604774 |
10 |
Fiber Washer |
421200 |
11 |
Washer |
257061 |
12 |
Lock Washer |
257432 |
13 |
Hex Bolt |
243581 |
14 |
Spacer |
282615 |
15 |
Washer |
772061 |
16 |
Deflector Cone |
423680 |
17 |
Bearing Shield |
721167 |
18 |
M1 Spindle Shaft Assembly |
604773 |
19 |
Square Key |
281582 |
20 |
Hex Flange Whiz Bolt |
253192 |
