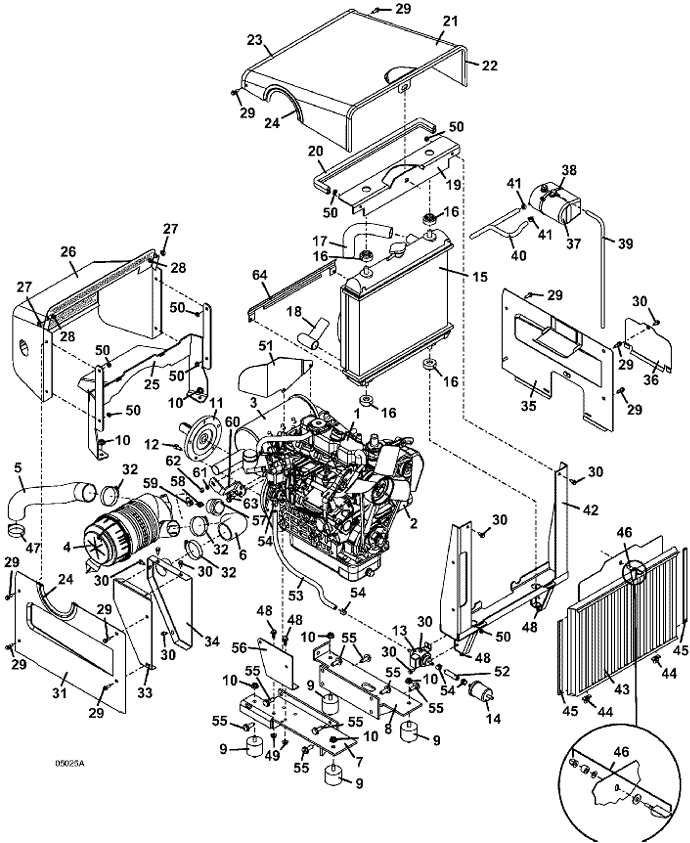

Item # |
Description |
Part Number |
1 |
Kubota Gas Engine |
100172 |
2 |
Kubota Oil Filter |
100800 |
3 |
Kubota Muffler |
101235 |
- |
Kubota Flange Exhaust Gasket |
101040 |
4 |
Nelson 90 degree Air Cleaner |
100207 |
- |
Air Cleaner Cover Clip |
100197 |
- |
Air Cleaner Cover |
100199 |
- |
Dust Ejector |
100202 |
- |
Kohler Rain Cap |
100203 |
- |
Outer HD Air Filter |
100936 |
- |
Inner HD Air Filter |
100937 |
5 |
Air Intake Hose |
424535 |
6 |
Breather Inlet Hose |
424520 |
7 |
902D right Engine Mount |
644286 |
8 |
902D left Engine Mount |
644287 |
9 |
Vibration Isolator |
424078 |
10 |
Whiz Nut |
253043 |
11 |
Clutch Stub Shaft |
824637 |
12 |
M8 Socket Head Screw |
270075 |
13 |
Electric Fuel Pump |
101510 |
14 |
Kubota Fuel PreFilter |
101005 |
15 |
Kubota Radiator |
101612 |
16 |
Radiator Isolator Mount Bushing |
101080 |
17 |
Upper Radiator Hose |
101058 |
18 |
Lower Radiator Hose |
101059 |
19 |
Radiator Channel Clamp |
729327 |
20 |
Hood Bulb Seal |
822518 |
21 |
722D Upper Hood |
644293 |
22 |
Front Hood Trim |
822639 |
23 |
Rear Hood Trim |
822637 |
24 |
Air Cleaner Seal Trim |
822513 |
25 |
Rear Hood Support |
644810 |
26 |
W/A 920D Hood |
644329 |
27 |
.25 THK Spacer |
902297 |
28 |
Nylon Insert Nut |
253440 |
29 |
Hex Whiz Bolt |
253175 |
30 |
Hex Whiz Bolt |
253173 |
31 |
right Hood Side |
722712 |
32 |
Screw Type Hose Clamp |
280305 |
33 |
Air Intake Box Mount |
644066 |
34 |
Air Intake Box |
644059 |
35 |
left 722D W/A Hood Side |
644322 |
36 |
Oil Filter Cover |
722722 |
37 |
Expansion Tank |
422012 |
38 |
Tie |
423154 |
39 |
Clear Vent Hose |
821748 |
40 |
Hose |
821749 |
41 |
Spring Hose Clamp |
280260 |
42 |
Lower 902 Radiator Mount |
644658 |
43 |
920D Grille with Guard |
644668 |
44 |
Rear Belt Isolator Shield |
422090 |
45 |
Radiator Grille Trim |
822636 |
46 |
Swell Latch Assembly |
604805 |
47 |
Screw Type Hose Clamp |
280303 |
48 |
Hex Flange Whiz Bolt |
253192 |
49 |
Whiz Nut |
253035 |
50 |
Whiz Nut |
253025 |
51 |
Muffler Shield |
723228 |
52 |
Fuel Hose |
821726 |
53 |
928D Fuel Line Hose |
821716 |
54 |
Spring Hose Clamp |
280261 |
55 |
Hex Bolt |
271121 |
56 |
Coil Mount |
754224 |
57 |
Filter Minder Gauge with Mount |
141012 |
58 |
O-Ring Filter Fitting |
363815 |
59 |
Street Ell Fitting |
363828 |
60 |
Muffler Support Strap |
732601 |
61 |
Lock Washer |
257402 |
62 |
Hex Bolt |
274145 |
64 |
Hex Bolt Fl W/Ser |
271021 |
65 |
Fan Shield |
721006 |
