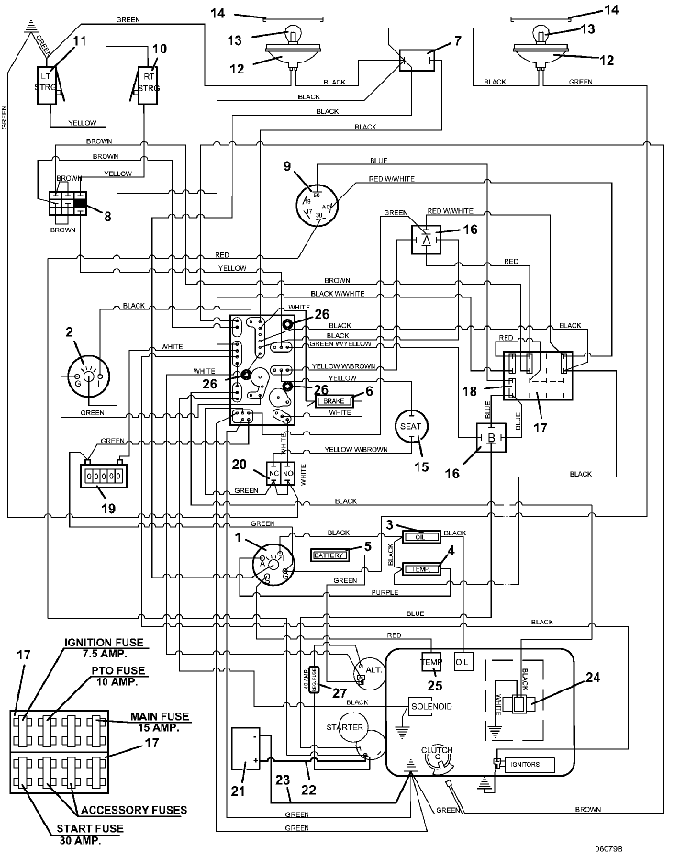

329 • Electrical Wiring
2010½
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Electric Zoned Temperature Gauge |
141160 |
- |
Gauge Light |
141210 |
2 |
Voltmeter Gauge |
141200 |
- |
Gauge Light |
141210 |
3 |
Oil Indicator Light |
182327 |
4 |
Temperature Indicator Light |
182328 |
5 |
Battery Indicator Light |
182325 |
6 |
Brake Indicator Light |
182326 |
7 |
Light Switch |
184179 |
8 |
Push / Pull Switch |
183925 |
9 |
Kubota Sealed Key Switch |
183827 |
10 |
Lever Switch |
183860 |
- |
Right Steering Switch Mount |
720160 |
11 |
Lever Switch |
183860 |
- |
Left Steering Switch Mount |
720161 |
12 |
Worklamp (Flood) |
182253 |
13 |
Light Bulb for Worklamp |
182005 |
14 |
Snap-Mount Bezel for Worklamp |
182251 |
15 |
Twist-In Seat Switch |
183871 |
16 |
12 volt DC Relay |
184272 |
- |
6mm Type 1 Push-On |
184570 |
- |
.250 Faston Terminal |
184581 |
- |
5-Way Female Connector |
184926 |
17 |
Fuse Block |
181722 |
- |
1 Wire Fuse Clip |
184458 |
- |
2 Wire Fuse Clip |
184460 |
- |
Double Wire Fuse Clip |
184472 |
18 |
Auto ATC 30 Amp Fuse |
181470 |
- |
Auto ATC 7.5 Amp Fuse |
181460 |
- |
Auto ATC 10 Amp Fuse |
181462 |
- |
Auto ATC 15 Amp Fuse |
181465 |
19 |
Snap-in Hour Meter |
141551 |
20 |
Brake Interlock Switch |
183894 |
21 |
12 volt Side Post Wet Battery |
180130 |
- |
12 Volt Side Post Dry Battery |
180131 |
- |
Hex Bolt |
243309 |
- |
Battery Box Assembly with Strap |
603104 |
- |
Battery Hold Down Strap |
604785 |
22 |
Red 42" Battery Cable |
180340 |
- |
Alternator Terminal Red Boot |
425215 |
- |
Starter Terminal Boot |
425219 |
- |
Battery Terminal Boot |
425223 |
23 |
Black 39" Battery Cable |
180295 |
24 |
Electric Fuel Pump |
101510 |
25 |
Temperature Sender |
141222 |
26 |
PC Board Support Spacer |
423690 |
27 |
Inline Regulator Fuse Holder |
604880 |
- |
Auto ATC 40 Amp Fuse |
181475 |
28 |
432 Wiring Assembly |
605869 |
29 |
Console Decal Pic |
161124 |
