Genuine OEM Grasshopper® Mower Parts Diagrams

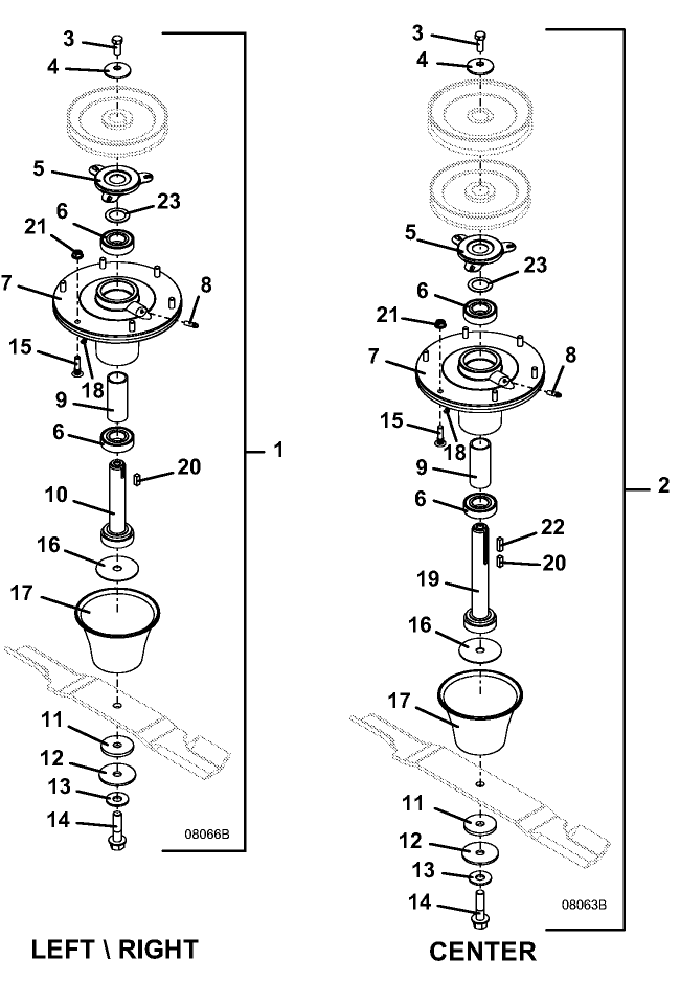

329B • Blade Spindle Assembly - M152 / M161
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Left & Right Spindle Assembly(includes items 3-18) |
623763 |
2 |
Center M1 Blade Spindle Assembly, center (includes items 3-9 and 11-19) |
623780 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Bearing Shield |
721167 |
6 |
Ball Bearing |
110081 |
7 |
Aluminum Spindle Housing Assembly |
604413 |
8 |
Zerk Grease Fitting |
280745 |
9 |
Deep Spindle Bearing Spacer |
903643 |
10 |
5.75 Spindle Shaft Assembly |
604775 |
11 |
Fiber Washer |
421200 |
12 |
Washer |
257061 |
13 |
Hardened Blade Spindle Washer |
257057 |
14 |
Hex Bolt |
243583 |
15 |
Round Head Ribbed Neck Bolt |
247141 |
16 |
Washer |
772061 |
17 |
Deflector Cone |
423680 |
18 |
Relief Plug |
280705 |
19 |
M1 Spindle Shaft Assembly |
604773 |
20 |
Key Square |
281582 |
21 |
Whiz Nut |
253035 |
22 |
Square Key |
281583 |
23 |
Washer |
257106 |
