Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

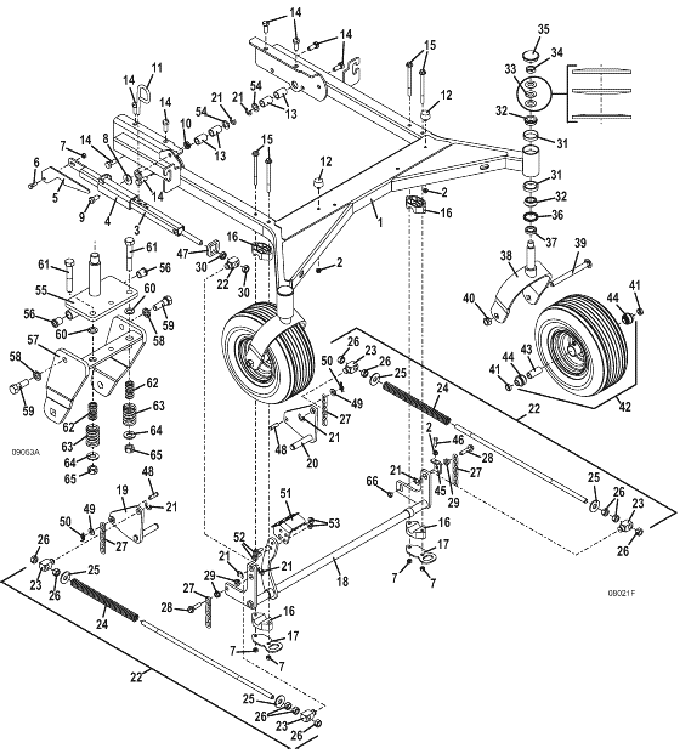

329B • Deck Carrier Assembly M172

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 Carrier

644135

-

Cutting Height Decal

162187

2

Whiz Nut

253035

3

M1 Height Adjustment Tube

644778

4

Latch Tube Guide

644305

5

Deck Latch

775104

6

Hex Bolt

243330

7

Lock Nut

253890

8

Nylon Washer

821516

9

Hex Bolt

243560

10

Nylon Insert Nut

253470

11

Height Adjustment Deck Pin

730434

12

Rubber Bumper

424052

13

Poly Bearing

422640

14

Hex Bolt

243565

-

Nut - Flange Spriral Loct

253067

15

Flange Bolt

253215

16

M1 Bearing Block

423643

17

Lift Bearing Plate

774064

18

M1 Deck Adjustable Lift Lever

644482

19

M1 right Rear Deck Rocker

644707

20

M1 left Rear Deck Rocker

644708

21

External Retainer

263529

22

Rod & Spring Assembly M172

326108

23

Spring Rod Mount Shaft

882035

24

Compression Spring

283395

25

Washer

257080

26

Nut

254490

27

M1 Chain - 5 Links

820331

28

Hex Bolt GR 8

243458

29

Whiz Nut

253058

30

Nut

254493

31

Bearing Cup

123522

32

Taper Bearing

122522

33

Spring Washer

257320

34

Nut - Jam Nylon - Toplock

254505

35

Domed Dust Cap

481434

36

Seal

125855

37

Spacer

282615

38

Fork -Tailwheel Tapered Bearing

645221

39

Carriage Bolt

247726

40

Lock Nut

253970

41

Axle Spacer

902422

42

Rear Wheel Assembly with Bearings 13x6.5x6

603975

-

Tire 13 x 6.50 x 6

482355

-

Wheel without Tire / without Bearings 6 x 4.5

483306

43

Axle Spacer

423750

44

DP Wheel Ball Bearing

120048

45

M1 Deck Adjusting Strap

732586

46

Hex Bolt

243205

47

Height Adjustment Spacer - M1

423696

48

Clevis Pin

261405

49

Washer

257051

50

Cotter Ring

260612

51

Foot Pedal - M1 Carrier Adjustable

644467

52

Bolt Whiz Flange

253203

53

Nut - Whiz

253043

54

Washer - 18 GA Bushing

257092

55

Pivot - Fork Yoke Suspension

643677

56

Oilite Bearing

121734

57

Fork Yoke - Suspension

643313

58

Lock Washer

257442

59

Pivot Bolt - Suspension Fork

887114

60

Washer

257063

61

Hex Bolt

243600

62

Compression Spring

283326

63

Compression Spring

283389

64

Washer

257062

65

Lock Nut

253930

66

Nut

254461
