Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

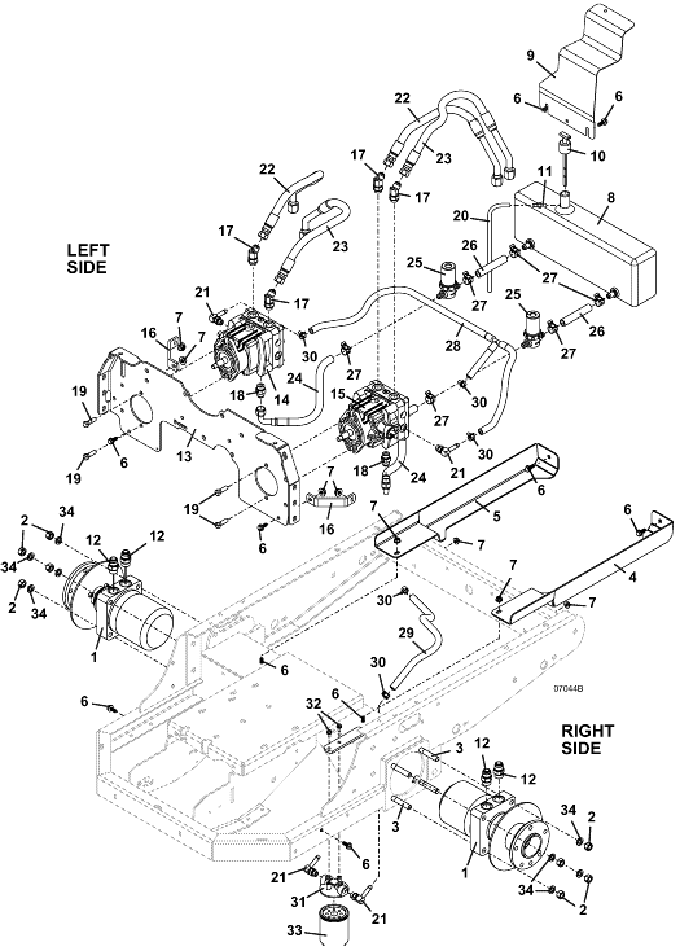

329B • Reservoir and Hose Assembly

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603602

2

Nut

254470

3

Diamond Head Bolt

243597

4

Tank Rail - right

645800

5

Tank Rail - left

645801

6

Hex Flange Whiz Bolt .312-18 x .75

253192

7

Whiz Nut

253035

8

M1 300/400 Oil Reservoir Assembly

603606

-

Grommet

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 degree Fitting

363638

9

Oil/Fuel Tank Anchor

723041

10

M1 Oil Reservoir Dipstick

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

13

Pump Plate

644619

14

Hydro Pump - left

391462

15

Hydro Pump - right

391463

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360046

18

Steel O-Ring Boss Fitting

363832

19

Hex Bolt

243335

20

Clear Vent Hose

821724

21

Adapter

360056

22

Hose Assembly

424375

23

Hose Assembly

424377

24

Hose Assembly

424314

25

In-Line Strainer

366553

26

Hydraulic Hose

821794

27

Spring Hose Clamp

280266

28

Return Hose Assembly

424313

29

Hydraulic Hose

821787

30

Spring Hose Clamp

280264

31

M1 Series Filter Base

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Lock Washer

257432
