Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

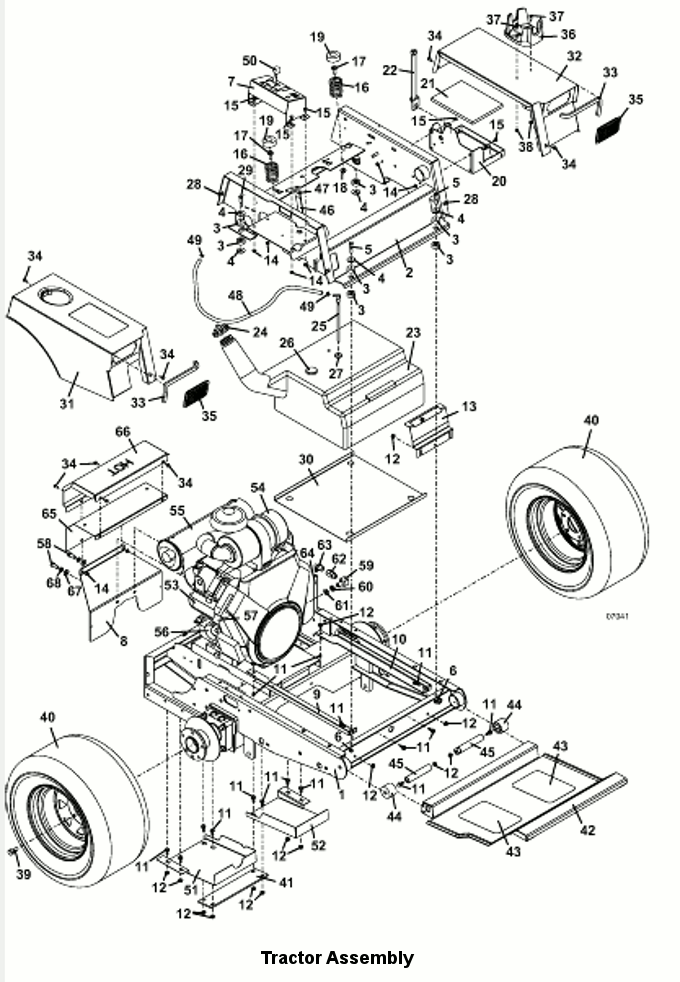

335B • Tractor Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Frame -

645210

2

Upper Frame Notched

645205

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243215

6

Nylon Insert Nut

253450

7

335 Console Panel

721265

8

Muffler Shield Bracket

766160

9

Tank Rail - right

754051

10

Tank Rail - left

754052

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Gas Tank Anchor

722194

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut .375-16

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

604785

23

M1 Gas Tank Assembly

604800

24

Fuel Cap

100210

25

Fuel Tube

363921

26

8.5 gal. In-Tank Fuel Gauge

141140

-

Grommet - Fuel Gauge Mount

424275

27

Fuel Tube Bushing (Grommet)

101875

28

Speed Nut

254431

29

Hex Bolt

243225

30

M1 Tank Shield

722495

31

329B/335 Fender RT

644428

-

Decal - 335 Trim RT

163428

32

329B/335 Fender LT

644429

-

Decal - 335 Trim LT

163429

33

Trim

822632

34

Hex Whiz Bolt

253173

35

Work Lamp Hole Plug

422079

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire Assembly - Turf - 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

41

Belt Guard Strap

783277

42

M1 On Frame Footrest

644256

-

M1 Frame Mount Footrest

644228

43

Foot Rest Tread

420902

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

Throttle Assembly

604831

-

Throttle Control Cable

323650

-

Throttle Lever Stop

722009

47

Handle Grip

422150

48

Fuel Hose

821738

49

Spring Hose Clamp

280260

50

Mechanical Choke

142214

51

300 right Hydro Debris Shield

723050

52

300 left Hydro Debris Shield

723051

53

35 HP b & S AC M1 Engine

100192

54

Air Cleaner

100209

-

Air Hood

100203

-

Air Filter Outer HD

100936

-

Air Filter Inner HD

100937

55

Muffler

101255

56

Oil Filter - Briggs

100803

57

Fuel Filter B & S

366560

58

Hex Bolt

243445

59

90 Degree Adapter

887124

60

Jam Nut

254716

61

Aluminum Washer

773010

62

Oil Drain Valve

143610

63

Nylon Fitting

363848

64

Oil Drain Tube

821752

65

Muffler Shield

722837

66

Muffler Shield - Outer

722841

67

Washer

257051

68

Lock Washer

257422

69

335B Decal Set

605348
