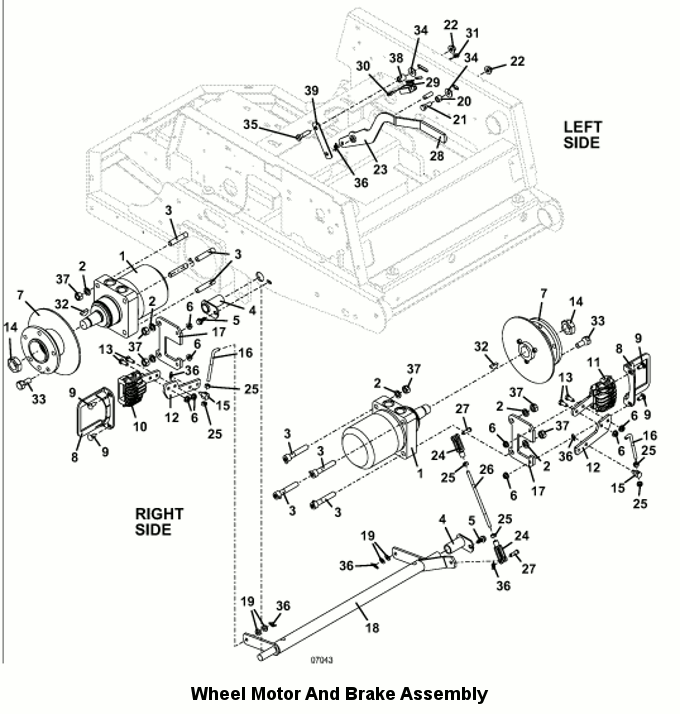

Item # |
Description |
Part Number |
1 |
Wheel Motor with Hub |
603602 |
2 |
Lock Washer |
257432 |
3 |
Pin Head Bolt Assembly |
604160 |
4 |
Bolt-In Brake Tube |
644077 |
5 |
Hex Flange Whiz Bolt |
253192 |
6 |
Whiz Nut |
253035 |
7 |
Bolt-On Rotor Wheel Hub |
604440 |
- |
8.0 Brake Rotor |
775192 |
- |
Socket Head Screw |
259592 |
8 |
M1/G2 Caliper Mount |
644121 |
9 |
Carriage Bolt |
247130 |
10 |
Caliper Brake Assembly - counter clockwise |
481103 |
- |
Brake Pad Kit |
603150 |
11 |
Caliper Brake Assembly - clockwise |
481102 |
- |
Brake Pad Kit |
603150 |
12 |
Brake Caliper Arm |
776056 |
13 |
Hex Bolt |
243195 |
14 |
Nut |
254522 |
15 |
Brake Linkage Pin |
880926 |
16 |
M1 Brake Linkage Rod |
730158 |
17 |
7.75 Rotor Brake Mount |
776174 |
18 |
200/300B Brake Tube |
644172 |
19 |
Washer |
257032 |
20 |
Spacer |
902280 |
21 |
Hex Bolt .375-16 x 1 |
243330 |
22 |
Whiz Nut |
253043 |
23 |
Brake W/A Lever |
644447 |
24 |
Clevis Yoke |
265537 |
25 |
Nut |
254441 |
26 |
Linkage Rod |
780157 |
27 |
Clevis Pin |
261284 |
28 |
Handle Grip |
422150 |
29 |
Brake Interlock Switch |
183894 |
30 |
Machine Screw |
250258 |
31 |
Whiz Nut |
253020 |
32 |
Woodruff Key |
281860 |
33 |
Lug Bolt |
248565 |
34 |
Washer |
257040 |
35 |
Hex Bolt |
243340 |
36 |
Cotter Ring |
260606 |
37 |
Nut |
254470 |
38 |
Spacer |
902283 |
39 |
M1 Reinforcement Pin |
774145 |
