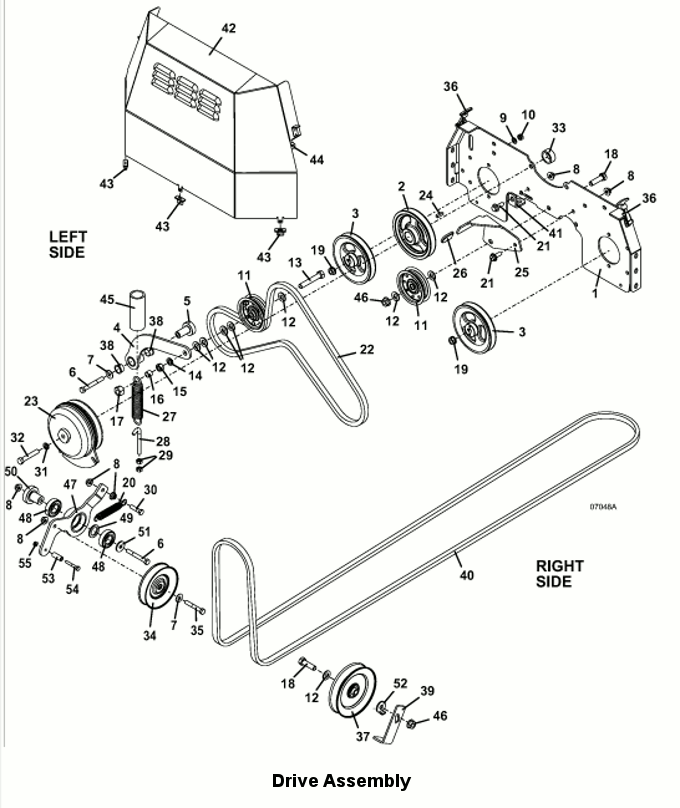

Item # |
Description |
Part Number |
1 |
Pump Plate |
644619 |
2 |
Sheave |
415884 |
3 |
Sheave |
415898 |
4 |
Idler Arm |
824484 |
5 |
Pedestal Bearing |
121650 |
6 |
Hex Bolt |
243365 |
7 |
Washer |
257040 |
8 |
Whiz Nut |
253043 |
9 |
Lock Washer |
257412 |
10 |
Lock Nut |
253890 |
11 |
Idler Pulley |
393195 |
12 |
Washer |
257062 |
13 |
Hex Bolt |
243601 |
14 |
Lock Washer |
257432 |
15 |
Nut |
254470 |
16 |
Nylon Bearing |
422558 |
17 |
Lock Nut |
253930 |
18 |
Hex Bolt |
243575 |
19 |
Whiz Nut |
253061 |
20 |
Extension Spring with Swivel |
283820 |
21 |
Flange Whiz Bolt |
253203 |
22 |
Belt |
382035 |
23 |
Clutch Assembly - 335B/335B/335 |
606243 |
- |
Step Bushing |
884313 |
24 |
Square Key |
281582 |
25 |
Anti Rotation Bracket |
755046 |
26 |
Clutch Bracket Cover |
422088 |
27 |
Spring Assembly |
604776 |
28 |
Idler Adjustment J Bolt |
730391 |
29 |
Nut |
254450 |
30 |
Hex Bolt |
243340 |
31 |
Lock Washer |
257422 |
32 |
Hex Bolt |
243470 |
33 |
Spacer |
902588 |
34 |
Idler |
393376 |
35 |
Hex Bolt |
243355 |
36 |
Rubber Draw Latch |
281301 |
37 |
Idler |
393390 |
38 |
Oilite Bearing |
121756 |
39 |
M1 Fixed Idler Guide Belt |
755155 |
40 |
Belt |
382093 |
- |
Belt |
382113 |
41 |
M1 Idler Spring Bracket |
732520 |
42 |
Rear Shield Assembly |
604754 |
43 |
Rear Belt Shield Isolator |
422090 |
44 |
Rubber Bumper |
424015 |
45 |
Clear Tubing |
822686 |
46 |
Nut - Whiz |
253066 |
47 |
Idler Arm Assembly - HD Mule Drive |
824476 |
48 |
Ball Bearing 2 Metal Seal 25MM |
110080 |
49 |
Washer |
257104 |
50 |
Pedestal Bearing - Heavy Duty |
885015 |
51 |
Washer |
774020 |
52 |
Tabbed Spacer - Fixed Idler |
754003 |
53 |
Guide Tube |
784057 |
54 |
Hex Bolt |
243038 |
55 |
Whiz Nut |
253025 |
