Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

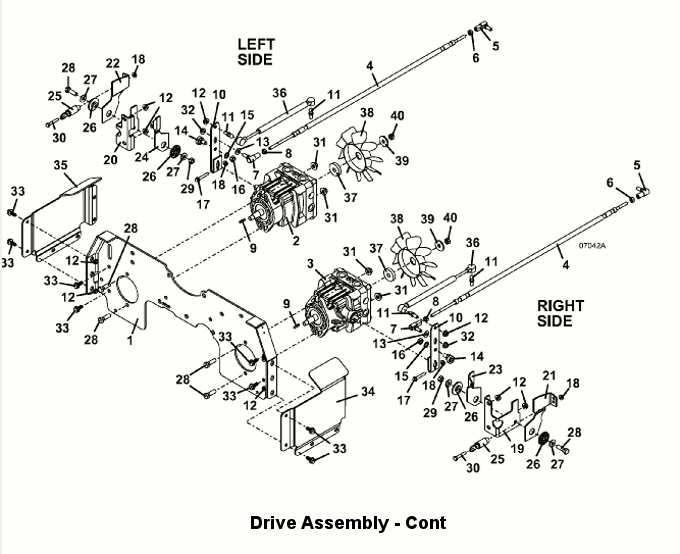

335B • Drive Assembly Cont (continued)

2010

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate

644619

2

Hydro Pump - left

391462

3

Hydro Pump - right

391463

4

Steering Linkage Rod

606530

5

Ball Joint, Righthand Thread

265615

6

Nut

254441

7

Ball Joint - Lefthand Thread

265616

8

Nut

254444

9

Rectangle Key

281562

10

Right Pump Control Arm

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Nut - Whiz

253025

19

M1 right Neutral Return Mount

754128

20

M1 left Neutral Return Mount

754129

21

right Neutral Return Front Arm

729136

22

left Neutral Return Front Arm

729137

23

right Neutral Return Arm

729138

24

left Neutral Return Arm

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Hex Bolt

243035

31

Whiz Nut

253043

32

Whiz Nut

253038

33

Hex Flange Whiz Bolt

253192

34

300 Series right Rein Plate

754157

35

300 Series left Rein Plate

754158

36

Damper

285031

37

Fan Mount Hub

417200

38

7" Clockwise Nylon Fan

320857

39

Washer

774020

40

Nut

254452
