Genuine OEM Grasshopper® Mower Parts Diagrams

400D 1.3L • Drive Assembly

2018

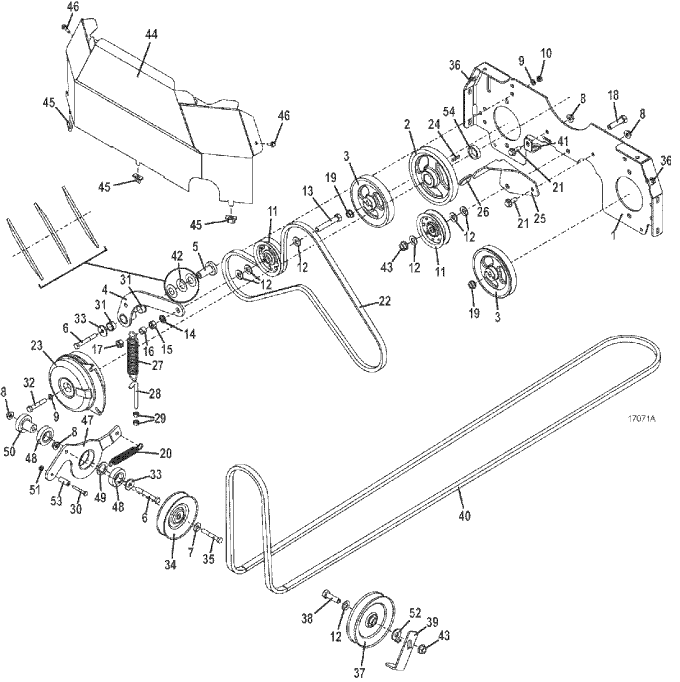

Drive Assembly 1

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate - 325 / 400

644633

2

Sheave

414744

3

Sheave

415898

4

Idler Arm 300/400 Pumps

824572

5

Pedestal Bearing

121651

6

Hex Bolt

243360

7

Washer

257040

8

Whiz Nut

253043

9

Lock Washer

257412

10

Lock Nut

253890

11

Idler Pulley

393195

12

Washer

257062

13

Hex Bolt

243601

14

Lock Washer

257432

15

Nut

254470

16

Nylon Bearing

422558

17

Lock Nut

253930

18

Hex Bolt

243580

19

Whiz Nut

253061

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt

253203

22

Belt

382038

23

Electric Clutch

388740

24

Square Key

281582

25

Anti Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Extension Spring

283848

28

Idler Adjustment J Bolt

730391

29

Nut

254450

30

Hex Bolt

243038

31

Oilite Bearing

121756

32

Hex Bolt

243349

33

Washer

774020

34

Idler

393376

35

Hex Bolt

243355

36

Speed Nut

254431

37

Idler

393390

38

Hex Bolt

243575

39

M1 Fixed Idler Guide Belt

755155

40

Belt 61" Deck

382097

-

Belt 72" Deck

382099

41

M1 Idler Spring Bracket

732520

42

Spring Washer

257319

43

Whiz Nut

253066

44

400 Rear Belt Shield

645735

45

Rear Belt Shield Isolator

422090

46

Hex Whiz Bolt

253175

47

Heavy Duty Mule Drive Idler Arm Assembly

824476

48

Ball Bearing

110081

49

Washer

257104

50

Heavy Duty Bearing Pedestal

885015

51

Whiz Nut

253025

52

Fixed Idler Tabbed Spacer

754003

53

Guide Tube

784057

54

Spacer

830420

Return to 400D Index Return to Top
