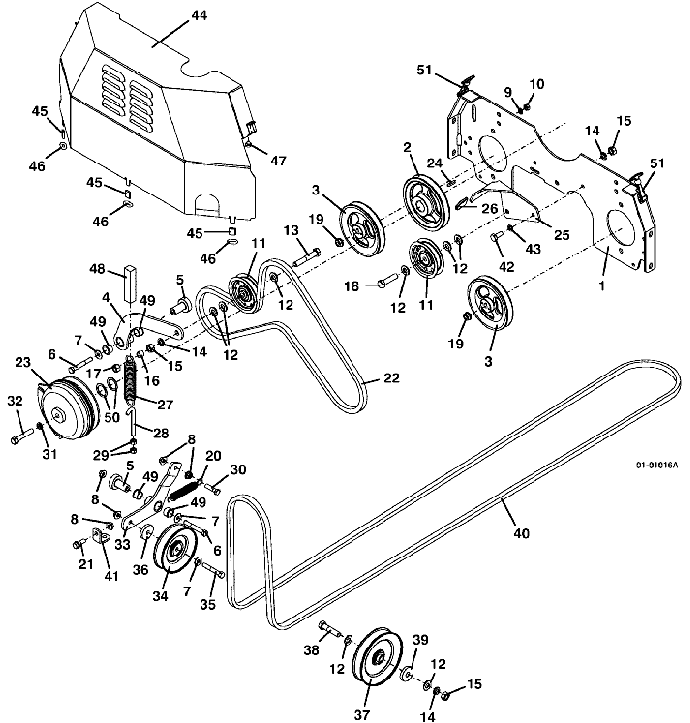

1

Pump Plate - 325 / 400

644633

2

Sheave

415884

3

Sheave

415898

4

Mule Drive Idler Arm

824486

5

Pedestal Bearing .750 x 1.5

121650

6

Hex Bolt .375-16 x 3

243365

7

Washer

257040

8

Whiz Nut .375-16

253043

9

Lock Washer

257412

10

Lock Nut .375-16

253890

11

Idler Pulley

393195

12

Washer

257062

13

Full Thread Hex Bolt .500-13 x 3 GR 5

243601

14

Lock Washer

257432

15

Nut .500-13

254470

16

Nylon Bearing

422558

17

Lock Nut .500-13

253930

18

Hex Bolt .500-13 x 2

243580

19

Flanged Nut with Counter Bore

830351

20

Extension Spring with Swivel

283820

21

Flange Whiz Bolt .375-16 x 1

253203

22

Belt

382038

23

Electric Clutch

388740

24

Square Key .250 x .875

281582

25

Anti Rotation Bracket

755046

26

Clutch Bracket Cover

422088

27

Spring Assembly

604776

28

Idler Adjustment J Bolt

730391

29

Nut .375-16

254450

30

Hex Bolt .375-16 x 1.500

243340

31

Lock Washer

257422

32

Hex Bolt .375-24 x 2.250

243349

33

Mule Drive Idler Arm

824486

34

Idler

393376

35

Hex Bolt .375-16 x 2.500

243355

36

Retainer Washer

883803

37

Idler Pulley

393390

38

Hex Bolt .500-13 x 2.250

243585

39

Retainer Washer .531 x 1.625

883804

40

Belt

382097

-

Belt

382099

41

Idler Spring Bracket - M1

732520

42

Hex Bolt

271120

43

Lock Washer

275580

44

Shield Assembly

604756

45

Rear Belt Shield Isolator

422090

46

Rear Belt Shield Isolator

422090

47

Rubber Bumper

424015

48

Idler Spring Damper

425650

49

Oilite Bearing .754 x .878 x .50

121756

50

Washer

257114

51

Rubber Draw Latch

281301
