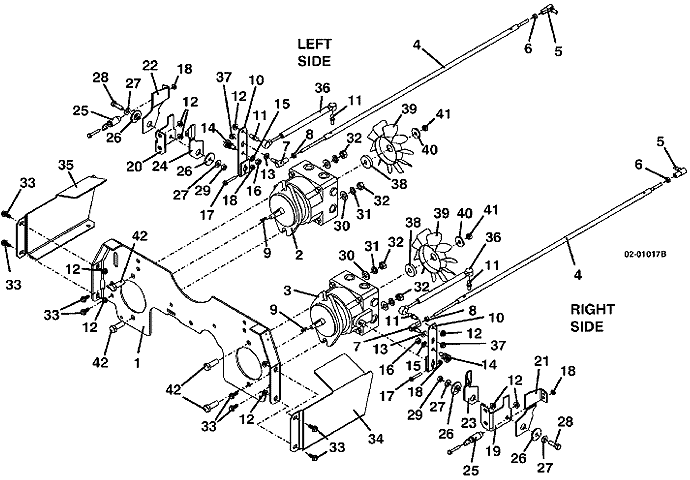

428D • Drive Assembly (continued)

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Pump Plate - 325 / 400

644633

2

Hydro Pump - left

391452

3

Hydro Pump - right

391453

4

400S Steering Linkage Rod

604526

5

Righthand Thread Ball Joint

265615

6

Nut

254441

7

Lefthand Thread Ball Joint

265616

8

Nut

254444

9

Rectangle Key

281562

10

Control Arm

725338

11

Ball Stud

265680

12

Whiz Nut

253035

13

Washer

257020

14

Eccentric Roller Assembly

603726

15

External Star Washer

257410

16

Nut

254450

17

Hex Whiz Bolt

253182

18

Whiz Nut

253025

19

Neutral Return Mount - right

729225

20

Neutral Return Mount - left

729229

21

Neutral Return Front Arm - right

729136

22

Neutral Return Front Arm - left

729137

23

Neutral Return Arm - right

729138

24

Neutral Return Arm - left

729139

25

Extension Spring

283823

26

Neutral Return Pivot Bearing

822304

27

Washer

257030

28

Hex Bolt

243335

29

Lock Nut

253890

30

Washer

257062

31

Lock Washer

257432

32

Nut

254470

33

Hex Flange Whiz Bolt

253192

34

400 right Pump Plate Gusset

729308

35

400 left Pump Plate Gusset

729309

36

Damper

285031

37

Whiz Nut

253038

38

10A Fan Mount Hub

885123

39

7" Clockwise Nylon Fan

320857

40

Washer

774020

41

Nut

254452

42

Hex Bolt

243570

Return to 430D Index Return to Top
