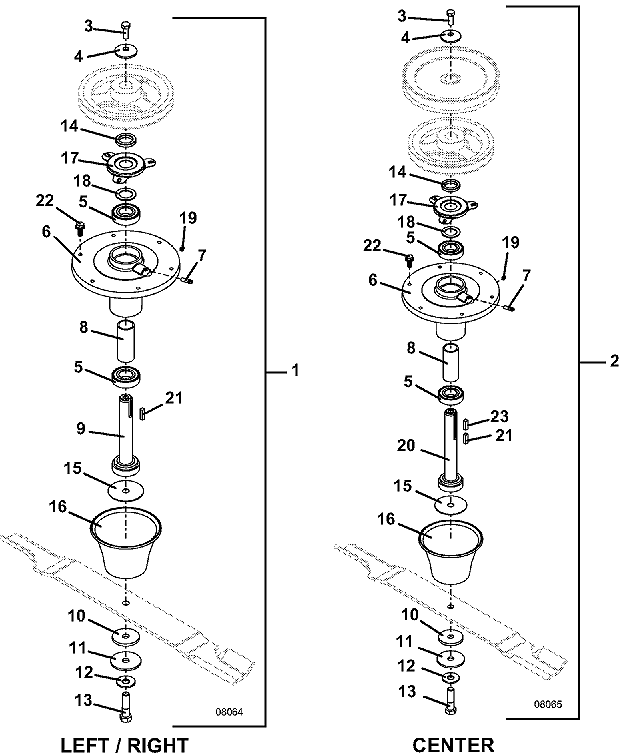

430D Blade Spindle Assembly for 72 inch Deck - 2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623764 - M172 Blade Spindle Assembly, left & right (includes items 3-19) | Add To Cart | |
| 2 | 623765 - M172 Blade Spindle Assembly, center (includes items 3-8 & 10-20) | Add To Cart | |
| 3 | 243331 - Hex Bolt | Add To Cart | |
| 4 | 257041 - Cupped Washer | Add To Cart | |
| 5 | 110081 - 25mm 2 Reg Seal Ball Bearing | Add To Cart | |
| 6 | 604414 - Cast Spindle Housing Assembly (includes item 19) | Add To Cart | |
| 7 | 280745 - Grease Fitting (Zerk) | Add To Cart | |
| 8 | 903643 - Deep Spindle Bearing Spacer | Add To Cart | |
| 9 | 604774 - 98S Spindle Shaft Assembly | Add To Cart | |
| 10 | 421200 - Fiber Washer | Add To Cart | |
| 11 | 257061 - Washer | Add To Cart | |
| 12 | 257057 - Hardened-Blade Spindle Washer | Add To Cart | |
| 13 | 243583 - Grade 8 Flange Hex Bolt | Add To Cart | |
| 14 | 282615 - Spacer | Add To Cart | |
| 15 | 772061 - Washer | Add To Cart | |
| 16 | 423680 - Deflector Cone | Add To Cart | |
| 17 | 721167 - Bearing Shield | Add To Cart | |
| 18 | 257104 - Washer | Add To Cart | |
| 19 | 280705 - Relief Plug | Add To Cart | |
| 20 | 604773 - M1 Spindle Shaft Assembly | Add To Cart | |
| 21 | 281583 - Square Key | Add To Cart | |
| 22 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 23 | 281582 - Square Key | Add To Cart |
