Genuine OEM Grasshopper® Mower Parts Diagrams

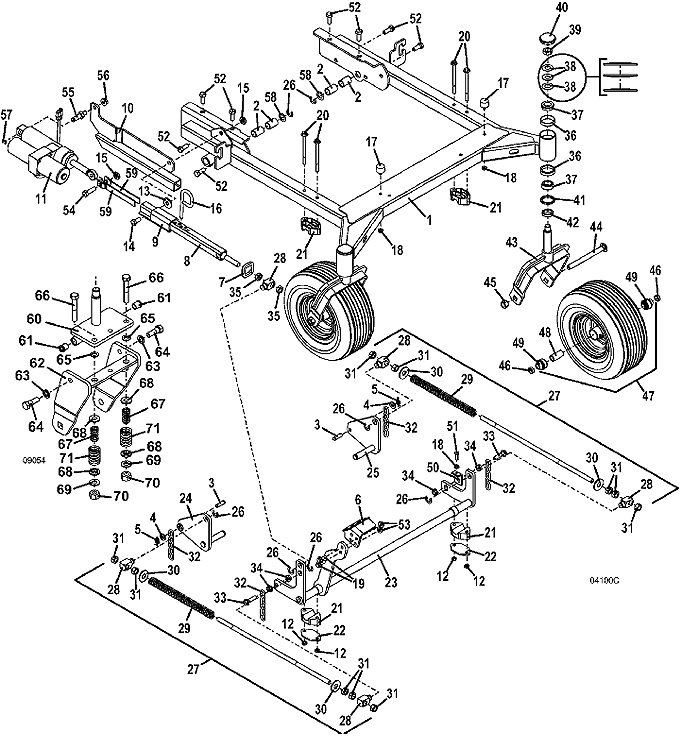

430D • Deck Carrier Assembly 61"
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M161 Ext Carrier |
645153 |
- |
M1 Cutting Height Decal |
162187 |
2 |
Oilite Bearing |
121766 |
3 |
Clevis Pin |
261405 |
4 |
Washer |
257051 |
5 |
Cotter Ring |
260612 |
6 |
Adjustable Foot Pedal for M1 Deck Carrier |
644467 |
7 |
M1 Height Adjustment Spacer |
423696 |
8 |
Adjustable Hydraulic Tube Weld |
645145 |
9 |
Latch Tube Kyb Guide |
644308 |
10 |
Hydraulic Adjustment Kyb Cylinder Mount |
644284 |
11 |
Hydraulic Kyb Pump Assembly |
604429 |
12 |
Lock Nut |
253890 |
13 |
Nylon Washer |
821516 |
14 |
Hex Bolt |
243560 |
15 |
Nylon Insert Nut |
253470 |
16 |
Height Adjustment Deck Pin |
730434 |
17 |
Rubber Bumper |
424052 |
18 |
Whiz Nut |
253035 |
19 |
Flange Whiz Bolt |
253203 |
20 |
Flange Bolt |
253215 |
21 |
M1 Bearing Block |
423643 |
22 |
Lift Bearing Plate |
774064 |
23 |
M1 Deck Adjustable Lift Lever |
644481 |
24 |
M1 right Rear Deck Rocker |
644707 |
25 |
M1 left Rear Deck Rocker |
644708 |
26 |
External Retainer |
263529 |
27 |
M161 Rod & Spring Assembly (includes items 28-31) |
326105 |
28 |
Spring Rod Shaft Mount |
882035 |
29 |
Compression Spring |
283395 |
30 |
Washer |
257080 |
31 |
Nut |
254490 |
32 |
M1 Lift Chain - 5 Links |
820331 |
33 |
GR 8 Hex Bolt |
243458 |
34 |
Whiz Nut |
253058 |
35 |
Nut |
254493 |
36 |
Bearing Cup |
123522 |
37 |
Tapered Bearing |
122522 |
38 |
Spring Washer |
257320 |
39 |
Top Lock Jam Nylon Nut |
254505 |
40 |
Domed Dust Cap |
481434 |
41 |
Seal |
125855 |
42 |
Spacer |
282615 |
43 |
Fork & Lock Nut Assembly |
604365 |
44 |
Carriage Bolt |
247725 |
45 |
Lock Nut |
253970 |
46 |
Axle Spacer |
902422 |
47 |
Wheel Assembly with Bearings |
603975 |
- |
Ribbed Tire 13 x 6.50 x 6 |
482355 |
- |
Wheel without Tire 6 x 4.5 |
483306 |
48 |
Rear Axle Center Spacer |
902429 |
49 |
DP Wheel Ball Bearing |
120048 |
50 |
Adjusting Strap |
732586 |
51 |
Hex Bolt |
243205 |
52 |
Hex Bolt |
243565 |
- |
Flange Spiral Lock Nut |
253067 |
53 |
Whiz Nut |
253043 |
54 |
Hex Bolt |
243575 |
55 |
Kyb Cylinder Mount Pin |
887115 |
56 |
Flange Nut |
253065 |
57 |
External Retainer |
263500 |
58 |
18 GA Bushing Washer |
257092 |
59 |
Slide Stop |
645144 |
60 |
Suspension Fork Yoke Pivot |
643677 |
61 |
Oilite Bearing |
121734 |
62 |
Suspension Fork Yoke |
643313 |
63 |
Lock Washer |
257442 |
64 |
Suspension Fork Pivot Bolt |
887114 |
65 |
Washer |
257063 |
66 |
Hex Bolt |
243600 |
67 |
Compression Spring |
283325 |
68 |
Washer |
257067 |
69 |
Washer |
257062 |
70 |
Lock Nut |
253930 |
71 |
1.203 x .162 x 1.750 Compression Spring |
283388 |
