430D • Wheel Motor & Brake Assembly

2013

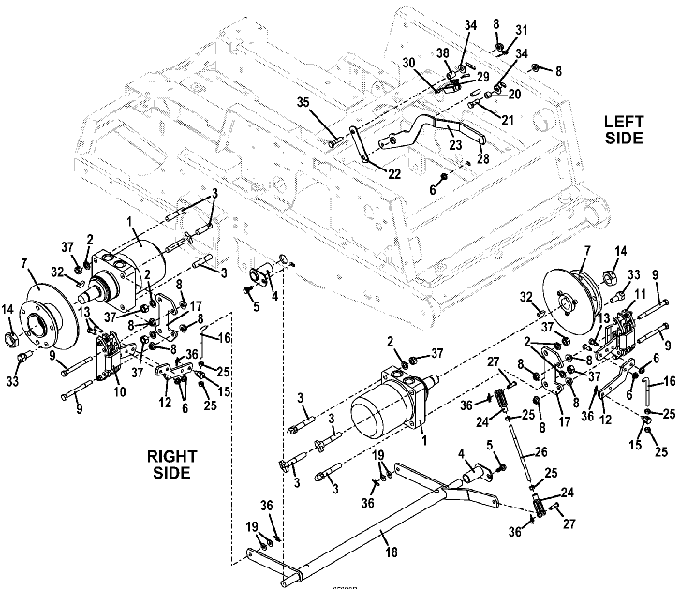

Wheel Motor and Brake Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor with Hub

603604

2

Lock Washer

257432

3

Diamond Head Bolt

243597

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt

253192

6

Whiz Nut

253035

7

Hub & Rotor Assembly

604436

8

Whiz Nut

253043

9

Hex Bolt

243385

10

700, 900, M1 Counterclockwise Brake Assembly

481141

-

Brake Pad Kit

481160

11

700, 900, M1 Clockwise Brake Assembly

481140

-

Brake Pad Kit

481160

12

M1 Brake Caliper Arm

776056

13

Hex Bolt

243195

14

Nut

254522

15

.312 Brake Linkage Pin

880926

16

M1 Brake Linkage Rod

730158

17

930D2/932G2 M1 Brake Mount

776123

18

400S W/A Brake Tube

644174

19

Washer

257032

20

Spacer

902280

21

Hex Bolt

243335

22

M1 Reinforcement Pin

774145

23

M1 Brake Lever

644447

24

Clevis Yoke

265537

25

Nut

254441

26

Linkage Rod

780157

27

Clevis Pin

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut

253020

32

Woodruff Key

281860

33

Lug Bolt

248565

34

Washer

257040

35

Hex Bolt

243340

36

Cotter Ring

260606

37

Nut

254470

38

Spacer

902283
