430D • Electrical Wiring Serial #6312278 & Below

2013

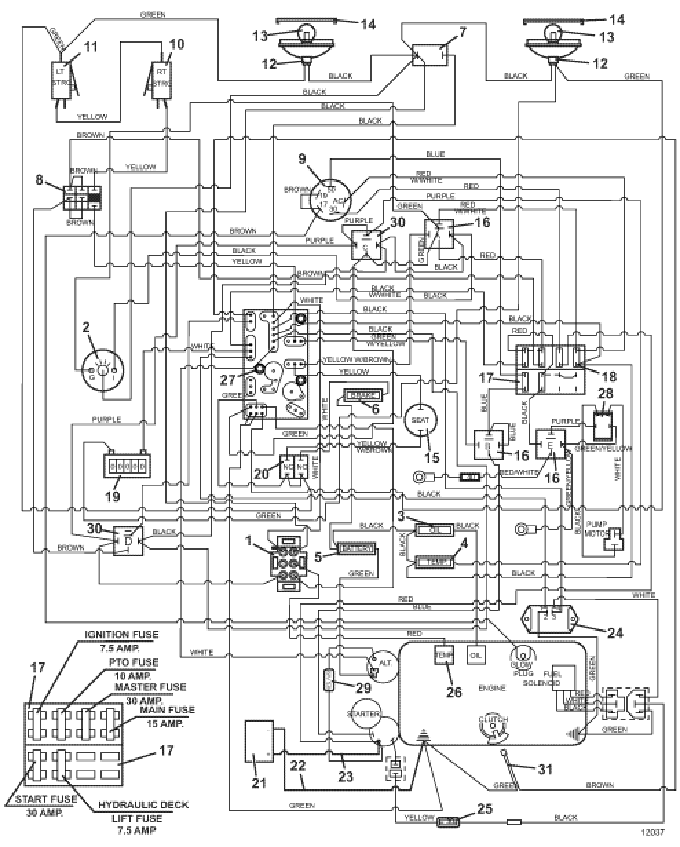

Electrical Wiring Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Electric Zoned Temperature Gauge

141165

2

Voltmeter Gauge

141203

-

Light Bulb-OBSOLETE

182007

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Light Switch

184179

8

Push / Pull Switch

183925

9

Kubota Sealed Keyed Switch

183827

-

Double Notch Kubota Keyed Ignition

101106

10

Lever Switch

183860

-

right Steering Switch Mount

720160

11

Lever Switch

183860

-

left Steering Switch Mount

720161

12

Flood Worklamp

182253

13

Light Bulb for Worklamp

182005

14

Snap-Mount Bezel for Worklamp

182251

15

Twist-In Seat Switch

183871

16

12 volt DC Relay

184272

17

Fuse Block

181722

-

1 Wire Clip

184458

-

2 Wire Clip

184460

-

Double Wire Clip

184472

18

Fuse 30 Amp Auto

181470

-

Fuse 7.5 Amp Auto

181460

-

Fuse 10 Amp Auto

181462

-

Fuse 15 Amp Auto

181465

19

Snap-in Hour Meter

141551

20

Brake Interlock Switch

183894

21

12 Volt Side Post Battery

180130

-

12 Volt Side Post Dry Battery

180131

-

Hex Bolt

243309

22

42& Red Battery Cable

180340

-

Red Alternator Boot Terminal

425215

-

Battery Boot Terminal

425219

-

Battery Boot

425223

23

Black 20& Battery Cable

180295

24

Interlock Module Switch

184220

25

Inline Auto Fuse Holder

181735

-

30 amp Auto ATC Fuse

181470

26

Temperature Sender

141224

27

PC Board Support Spacer

423690

28

Toggle Switch

184084

29

Inline Regulator Fuse Holder

604880

-

40 amp Auto ATC Fuse

181475

30

12VDC Relay w/Diode

184266

31

Modified Pigtail Clutch

604431

32

Cutting Height Decal

162189

33

430D Wiring Assembly

605893

Return to 430D Index Return to Top
