Genuine OEM Grasshopper® Mower Parts Diagrams

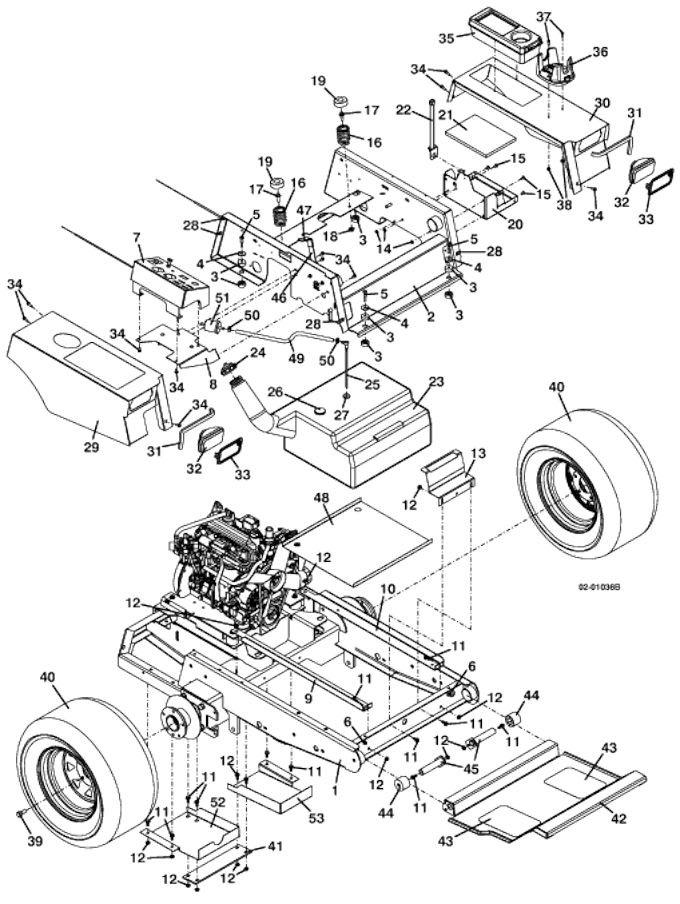

432 • Tractor Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Lower Frame - 400

606349

2

Upper Frame - M1 Kubota

644248

3

Step Bushing

257037

4

Washer

774020

5

Hex Bolt

243220

6

Nylon Insert Nut

253450

7

300S M1 Console

644139

8

Console Mount - 300 Console

644141

9

400 Tank Rail - right

754092

10

400 Tank Rail - left

754093

11

Hex Flange Whiz Bolt

253192

12

Whiz Nut

253035

13

Tank Bracket

723091

14

Whiz Nut

253025

15

Truss Whiz Bolt

253176

16

Compression Spring

283516

17

Whiz Flange Bolt

253203

18

Whiz Nut

253043

19

Seat Spring Cap

422127

20

Battery Box with Strap

644108

21

Battery Tray Pad

427275

22

Battery Hold-down Strap

603110

23

Kubota Gas Tank Assembly

604802

24

Fuel Cap

100210

25

Fuel Tube

101815

26

In-Tank Fuel Gauge

141140

-

Grommet

424275

27

Grommet

101875

28

Speed Nut

254431

29

M1 400S Right Fender

644270

-

432 Right Trim Decal

163272

30

M1 400S Left Fender

644271

-

432 Left Trim Decal

163273

31

700/900 Fender Edge Trim

822635

32

Flood Worklamp

182253

33

Snap-Mount Worklamp Bezel

182251

34

Hex Whiz Bolt

253173

35

Tool Box

422040

36

Cup Holder

150225

37

Cap Screw

259030

38

Nut

254436

39

Lug Bolt

248565

40

Wheel & Tire 24 x 12 x 12

483965

-

Turf Tire 24 x 12 x 12

482486

-

Bar Tread Tire Only 24 x 12 x 12 AT101

482487

-

Wheel Only 12 x 8.5 x 4.25 (for 61" & 72" Decks)

483440

-

12" Wheel & Bar Tread Tire (right)

483968

-

12" Wheel & Bar Tread Tire (left)

483969

41

Belt Guard Strap

783277

42

LC M1 52/61 Foot Rest

644269

-

M1 On-Frame Foot Rest

644256

43

Foot Rest Tread

420902

44

Seat Isolator

424095

45

Seat Hinge Pin

644618

46

432 Throttle Assembly

604829

-

Throttle Control Cable

323646

-

Throttle Lever Stop

722009

47

Handle Grip

422150

48

M1 Tank Shield

722495

49

Fuel Line Hose

821718

50

Hose Clamp

280270

51

Kubota Fuel Filter

101005

52

Right Mule Belt Shield

723088

53

Left Mule Belt Shield

723089

54

Mechanical Choke Housing

142224

55

Decal Set - 432

604308

Return to 432 Index Return to Top
