Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

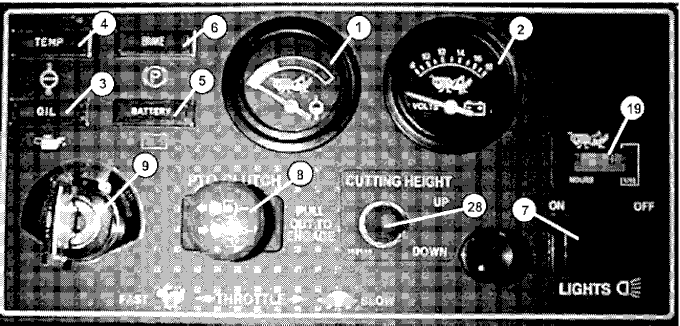

432 • Console

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Zoned Electric Temperature Gauge

141160

-

Gauge Light

141210

2

Voltmeter Gauge

141200

-

Gauge Light

141210

3

Oil Indicator Light

182327

4

Temperature Indicator Light

182328

5

Battery Indicator Light

182325

6

Brake Indicator Light

182326

7

Rocker Switch

184179

8

Push / Pull Switch

183925

9

Sealed Key Switch - Kubota

183827

-

Double Notch Kubota Ignition Key

101106

19

Snap-in Hour Meter

141551

27

Toggle

184084

-

Boot Toggle Switch

425200

-

Keyed Washer

770005
