Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

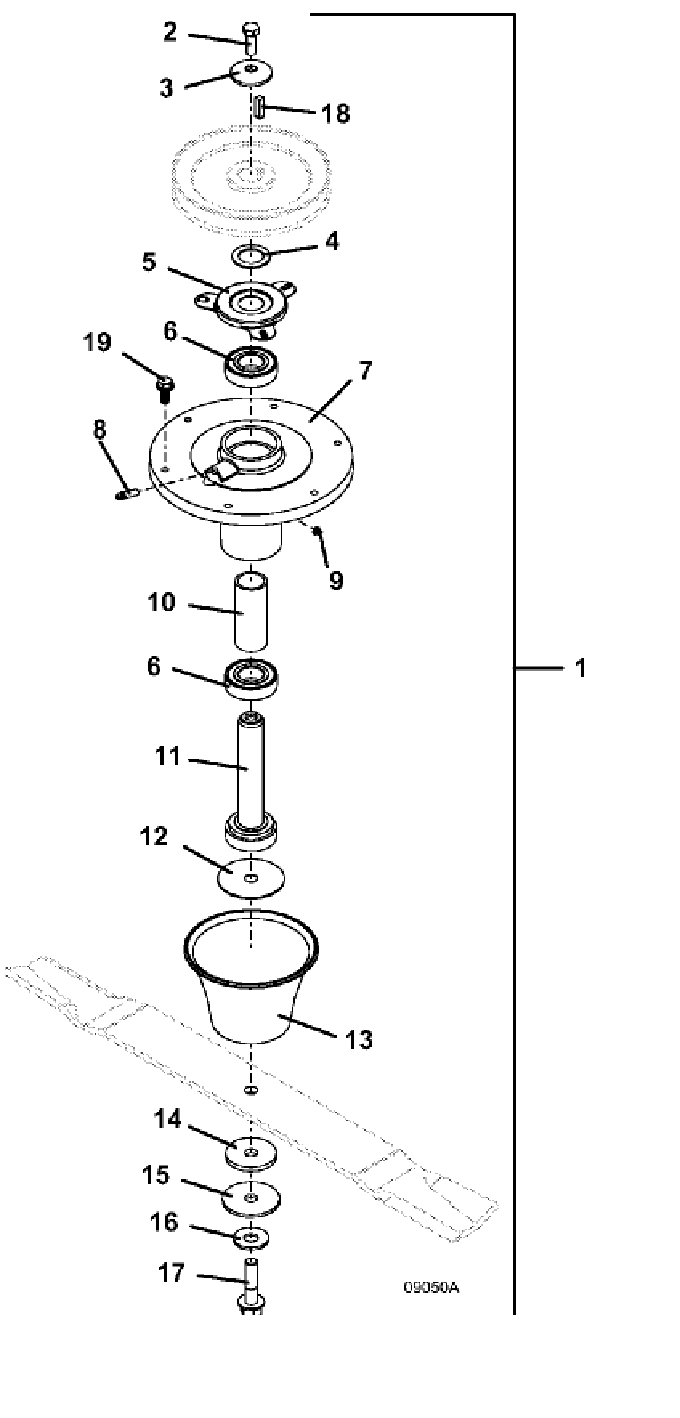

M1 • Blade Spindle Assembly M172R

2011

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blade Spindle Assembly M172R

623768

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Washer

257104

5

Shield Bearing

721167

6

Ball Bearing

110081

7

Cast Spindle Housing Assembly

604414

8

Grease Fitting (Zerk)

280745

9

Relief Plug

280705

10

Deep Spindle Bearing Spacer

903643

11

Spindle Shaft Assembly 5.75

604775

12

Washer

772061

13

Deflector Cone

423680

14

Fiber Washer

421200

15

Washer

257061

16

Hardened Blade Spindle Washer

257057

17

Grade 8 Flange Hex Bolt

243583

18

Key Square

281582

19

Hex Flange Bolt Whiz

253192
