Genuine OEM Grasshopper® Mower Parts Diagrams

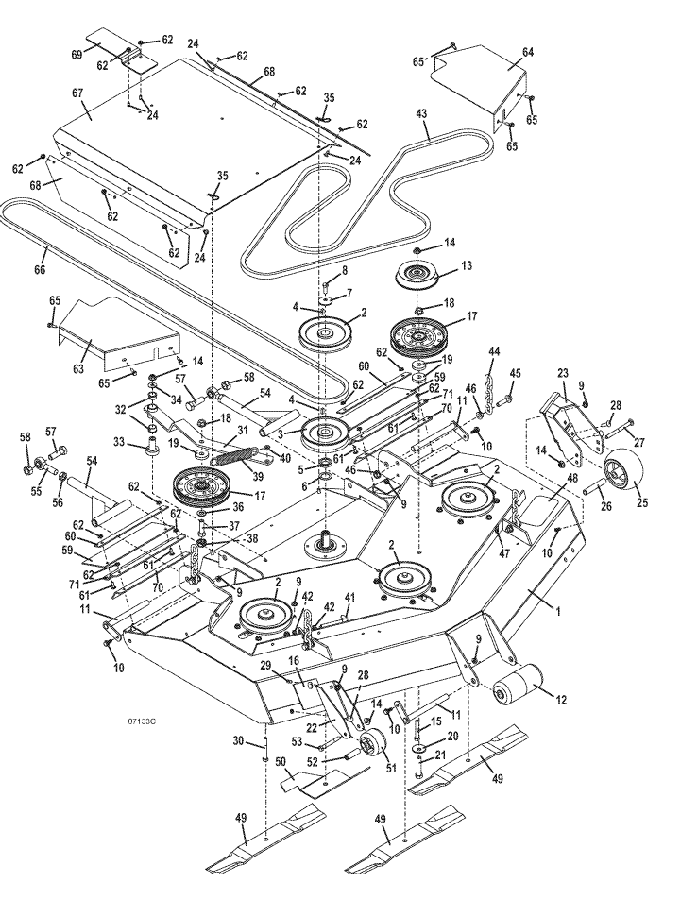

M1 Deck Assembly - M152R
2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
