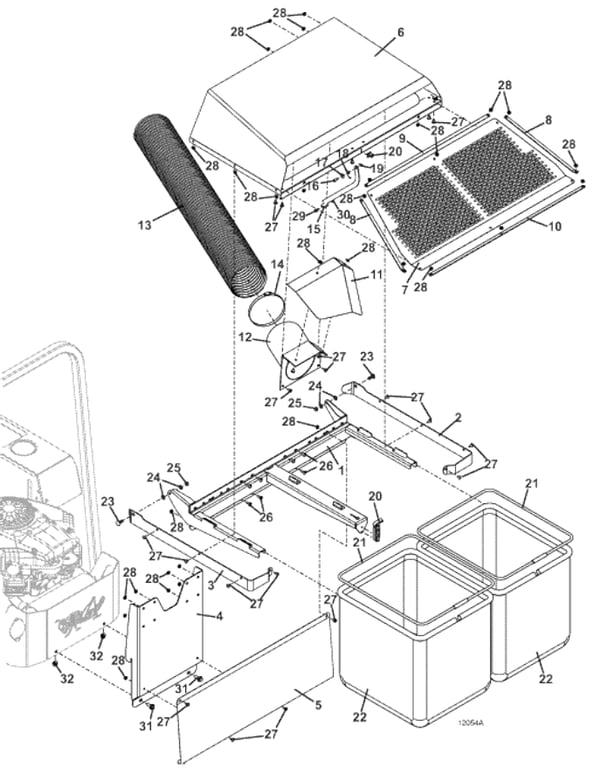

100 Series MidMount Tractors - Model 8HT M2 Catcher
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645373 - 8HT Bagger Frame | Call For Details | |
| 2 | 732623 - Top Right Guard Strap | Call For Details | |
| 3 | 732624 - Top Left Guard Strap | Call For Details | |
| 4 | 729634 - M2 Catcher Mount Plate | Call For Details | |
| 5 | 722805 - M2/200V Catcher Heat Shield | Call For Details | |
| 6 | 645830 - 8HT Collector Top | Call For Details | |
| 7 | 420008 - 8/12HT Fabric Screen | Add To Cart | |
| - | 721389 - 8/12HT Metal Screen | Call For Details | |
| 8 | 782305 - HT Fabric Screen Side Strap | Call For Details | |
| 9 | 782311 - HT Fabric Screen Front Strap | Call For Details | |
| 10 | 782361 - HT Fabric Screen Rear Strap | Call For Details | |
| 11 | 721331 - 8HT Inlet Deflector | Call For Details | |
| 12 | 645183 - Inlet Tube | Add To Cart | |
| 13 | 424398 - 44' Flex Hose | Add To Cart | |
| 14 | 280345 - 6' Hose Clamp | Add To Cart | |
| 15 | 754101 - Hard Top Prop | Add To Cart | |
| 16 | 261279 - Clevbis Pin | Add To Cart | |
| 17 | 257020 - Washer | Add To Cart | |
| 18 | 284407 - Torsion Spring | Add To Cart | |
| 19 | 260606 - Cotter Ring | Add To Cart | |
| 20 | 281304 - Flixible Draw Latch | Add To Cart | |
| 21 | 645723 - 8/12HT Bag Rod | Add To Cart | |
| 22 | 420004 - 3 Bushel Hard Bottom White Vac Bag | Add To Cart | |
| - | 420019 - Hard Bottom Black Vac Bag | Add To Cart | |
| 23 | 247253 - Carriage Bolt | Add To Cart | |
| 24 | 257047 - Nylon Washer | Call For Details | |
| 25 | 253460 - Nylon Insert Nut | Add To Cart | |
| 26 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 27 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 28 | 253025 - Whiz Nut | Add To Cart | |
| 29 | 253176 - Hex Whiz Bolt | Add To Cart | |
| 30 | 253440 - Nylon Insert Nut | Add To Cart | |
| 31 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 32 | 253043 - Whiz Nut | Add To Cart | |
| 33 | 504188 - 8HT Collector with Mount for 100V/200VG4 | Add To Cart |
