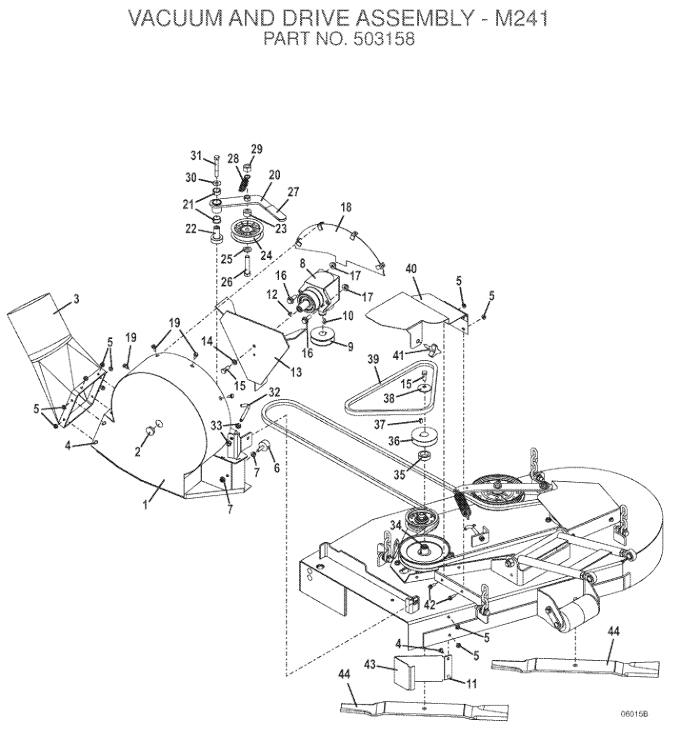

100 Series MidMount Tractors - Vacuum & Drive Assembly M241 503158
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645418 - Housing | Call For Details | |
| 2 | 422075 - 1' Diameter Plastic Hose Plug | Call For Details | |
| 3 | 833510 - Hose Adapter Tube | Add To Cart | |
| 4 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 5 | 253025 - Whiz Nut | Add To Cart | |
| 6 | 424056 - Bumper with Stud | Add To Cart | |
| 7 | 253035 - Whiz Nut | Add To Cart | |
| 8 | 390021 - Right Angle CCW Counter Clock WiseGearbox | Add To Cart | |
| 9 | 415815 - Sheave | Call For Details | |
| 10 | 281833 - Woodruff Key | Add To Cart | |
| 11 | 253177 - Truss Whiz Bolt | Add To Cart | |
| 12 | 281828 - Woodruff Key | Add To Cart | |
| 13 | 824180 - 241 Vac Fan | Call For Details | |
| 14 | 257412 - Lock Washer | Add To Cart | |
| 15 | 243331 - Hex Bolt | Add To Cart | |
| 16 | 253203 - Flanged Whiz Bolt | Add To Cart | |
| 17 | 253043 - Whiz Nut | Add To Cart | |
| 18 | 643881 - M2 41 Vac Housing Cover | Call For Details | |
| 19 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 20 | 824477 - 100 Vac Idler Assembly | Call For Details | |
| 21 | 121756 - Oilite Bearing | Add To Cart | |
| 22 | 121650 - Pedestal Bearing | Add To Cart | |
| 23 | 902426 - Idler Spacer | Add To Cart | |
| 24 | 393200 - Idler | Add To Cart | |
| 25 | 257062 - Washer | Add To Cart | |
| 26 | 243590 - Hex Bolt | Add To Cart | |
| 27 | 422150 - Handle Grip | Add To Cart | |
| 28 | 283819 - Extension Spring with Swivel | Add To Cart | |
| 29 | 253930 - Lock Nut | Add To Cart | |
| 30 | 257040 - Washer | Add To Cart | |
| 31 | 243360 - Hex Bolt | Add To Cart | |
| 32 | 730391 - Idler Adjustment 'J' Bolt | Add To Cart | |
| 33 | 254450 - Nut | Add To Cart | |
| 34 | 604767 - Spindle Shaft Assembly | Call For Details | |
| 35 | 282622 - Spacer | Add To Cart | |
| 36 | 414665 - Sheave | Add To Cart | |
| 37 | 281575 - Key Square | Add To Cart | |
| 38 | 257041 - Cupped Washer | Add To Cart | |
| 39 | 382740 - Vac Belt | Add To Cart | |
| 40 | 643882 - M2 41 Vac Shield | Call For Details | |
| 41 | 252821 - 3 Prong HD Deck Stud | Add To Cart | |
| 42 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 43 | 720308 - 100 Vac Baffle | Call For Details | |
| 44 | 320242 - 21' Medium Lift Blade | Call For Details | |
| 45 | 503158 - M241 HD Vac Assembly with Blades | Add To Cart |
