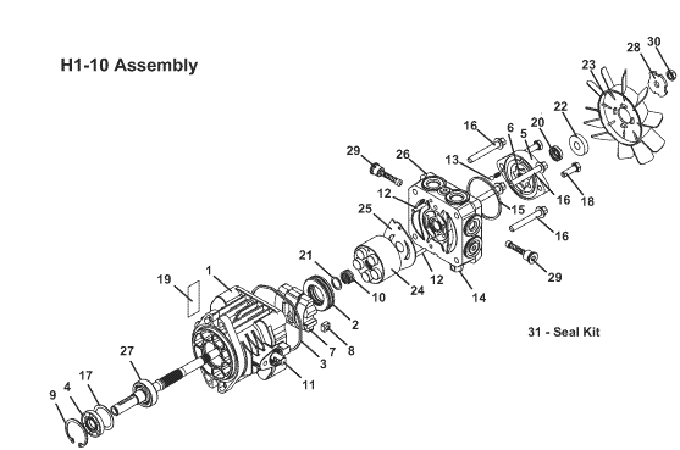

120 Pump Breakdown - 2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130455 - Housing Assembly | Call For Details | |
| 2 | 130413 - Thrust Bearing | Add To Cart | |
| 3 | 130457 - Seal Ring | Add To Cart | |
| 4 | 125366 - Input Seal | Add To Cart | |
| 5 | 130423 - Charge Cover (No Fan) | Call For Details | |
| - | 130422 - Charge Cover (With Fan) | Call For Details | |
| 6 | 130425 - Gerotor Set | Call For Details | |
| 7 | 130415 - Swashblock | Call For Details | |
| 8 | 130417 - Control Block | Call For Details | |
| 9 | 130405 - Input Seal Retaining Ring | Add To Cart | |
| 10 | 130473 - Spring | Call For Details | |
| 11 | 130419 - Trunnion Arm | Add To Cart | |
| - | 125359 - Trunnion Seal | Add To Cart | |
| - | 130402 - Retaining Ring | Add To Cart | |
| 12 | 130459 - Dowel Pin | Call For Details | |
| 13 | 130426 - Charge Relief Kit | Add To Cart | |
| 14 | 130448 - Bypass Valve | Add To Cart | |
| - | 130517 - Backup Ring | Add To Cart | |
| - | 130518 - O-Ring | Add To Cart | |
| 15 | 130421 - Charge Cover Seal Ring (No Fan) | Add To Cart | |
| - | 130420 - Chare Cover Seal Ring (With Fan) | Add To Cart | |
| 16 | NOT AVAILABLE | Unavailable | |
| 17 | 130407 - Washer | Add To Cart | |
| 18 | NOT AVAILABLE | Unavailable | |
| 19 | NOT AVAILABLE | Unavailable | |
| 20 | 125162 - Thru Shaft Seal | Add To Cart | |
| 21 | 130479 - Thrust Washer | Add To Cart | |
| 22 | 130430 - Fan Hub | Add To Cart | |
| 23 | See Drive Assembly Page | ||
| 24 | 130452 - Piston & Barrel Assembly | Add To Cart | |
| 25 | 130453 - Port Plate | Add To Cart | |
| 26 | 130437 - Left End Block Assembly | Call For Details | |
| - | 130440 - Right End Block Assembly | Call For Details | |
| 27 | 130475 - Shaft Assembly (No Fan) | Call For Details | |
| - | 130477 - Thru Shaft Assembly (Fan) | Call For Details | |
| - | 130482 - Input Bearing | Add To Cart | |
| - | 130483 - Bearing Retaining Ring (Wire) | Call For Details | |
| 28 | 130432 - Fan Retainer Washer | Add To Cart | |
| 29 | 130443 - Check Valve Assembly | Call For Details | |
| - | 130447 - O-Ring | Add To Cart | |
| 30 | 253461 - Nylon Insert Nut | Add To Cart | |
| 31 | 130401 - Seal Kit | Add To Cart |
