120K Blade Spindle Assembly - 2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.

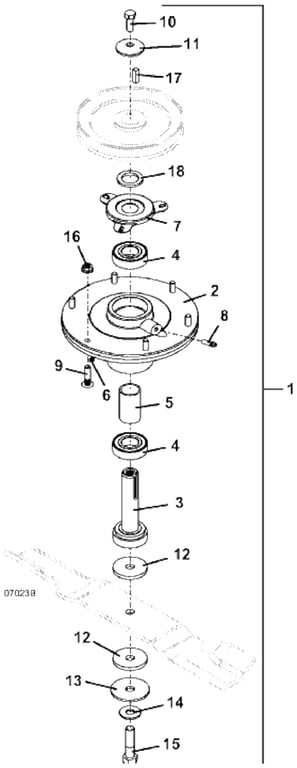

| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623760 - M1-48 Right/Left Spindle Assembly (Includes 2-15 / no zert on new spindles) | Add To Cart | |
| 2 | 604412 - Aluminum Spindle Housing Assembly | Add To Cart | |
| 3 | 604764 - 25mm 4.75 Spindle Shaft Assembly | Add To Cart | |
| 4 | 110081 - Ball Bearing | Add To Cart | |
| 5 | 903645 - Shallow Spacer Bearing Spacer | Add To Cart | |
| 6 | 280705 - Relief Plug | Add To Cart | |
| 7 | 721167 - Bearing Shield | Add To Cart | |
| 8 | 280745 - (Zerk) Grease Fitting | Add To Cart | |
| 9 | 247141 - Round Head Ribbed Neck Bolt | Add To Cart | |
| 10 | 243331 - Hex Bolt | Add To Cart | |
| 11 | 257041 - Cupped Washer | Add To Cart | |
| 12 | 421200 - Fiber Washer | Add To Cart | |
| 13 | 257061 - Washer | Add To Cart | |
| 14 | 257057 - Blade Spindle Hardened Washer | Add To Cart | |
| 15 | 243581 - Grade 5 Hex Bolt | Add To Cart | |
| 16 | 253035 - Whiz Nut | Add To Cart | |
| 17 | 281580 - Square Key | Add To Cart | |
| 18 | 257107 - Washer | Add To Cart |
