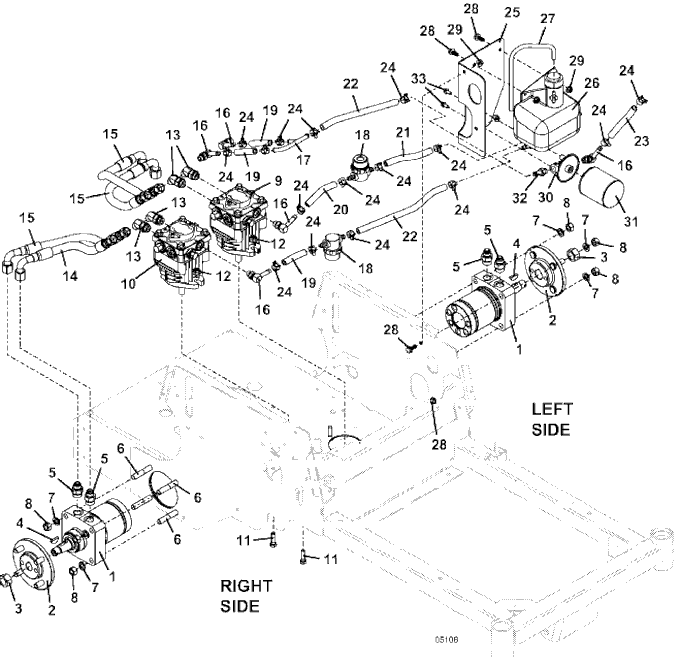

120K Reservoir & Hose Assembly - 2007
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603612 - Wheel Motor with Hub | Call For Details | |
| 2 | 603423 - 4 Bolt Hub Assembly | Add To Cart | |
| 3 | 253992 - Lock Nut | Add To Cart | |
| 4 | 281845 - Woodruff Key | Add To Cart | |
| 5 | 360063 - O-Ring Adapter | Add To Cart | |
| - | 126527 - O-Ring | Add To Cart | |
| - | 126537 - O-Ring | Add To Cart | |
| 6 | 243591 - Hex Bolt | Add To Cart | |
| 7 | 257432 - Lock Washer | Add To Cart | |
| 8 | 254470 - Nut | Add To Cart | |
| 9 | 391432 - H1 Left Hydro Pump - OBSOLETE | Add To Cart | |
| 10 | 391433 - H1 Right Hydro Pump | Add To Cart | |
| 11 | 243335 - Hex Bolt | Add To Cart | |
| 12 | 253043 - Whiz Nut | Add To Cart | |
| 13 | 360046 - Adapter Fitting | Add To Cart | |
| - | 126527 - O-Ring | Add To Cart | |
| - | 126537 - O-Ring | Add To Cart | |
| 14 | 424363 - Hose Assembly | Add To Cart | |
| 15 | 424364 - Hose Assembly | Add To Cart | |
| 16 | 360056 - Adapter | Add To Cart | |
| 17 | 363624 - Tube | Call For Details | |
| 18 | 366551 - In-Line Strainer | Add To Cart | |
| 19 | 821792 - Hydraulic Hose | Add To Cart | |
| 20 | 821774 - Hydraulic Hose | Add To Cart | |
| 21 | 821775 - Hydraulic Hose | Add To Cart | |
| 22 | 821776 - Hydraulic Hose | Add To Cart | |
| 23 | 821779 - Hydraulic Hose | Add To Cart | |
| 24 | 280264 - Spring Hose Clamp | Add To Cart | |
| 25 | 729409 - M2 Reservoir Mount Bracket | Call For Details | |
| 26 | 822333 - 100 Oil Reservoir | Add To Cart | |
| - | 421990 - Reservoir w/ Gasket Cap | Add To Cart | |
| 27 | 821724 - Clear Vent Hose | Add To Cart | |
| 28 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 29 | 253035 - Whiz Nut | Add To Cart | |
| 30 | 101024 - M1 Series Filter Base | Add To Cart | |
| 31 | 100855 - High-Efficiency Transaxle Oil Filter | Add To Cart | |
| 32 | 363864 - O Ring Boss Fitting | Add To Cart | |
| 33 | 253173 - Hex Whiz Bolt | Add To Cart |
