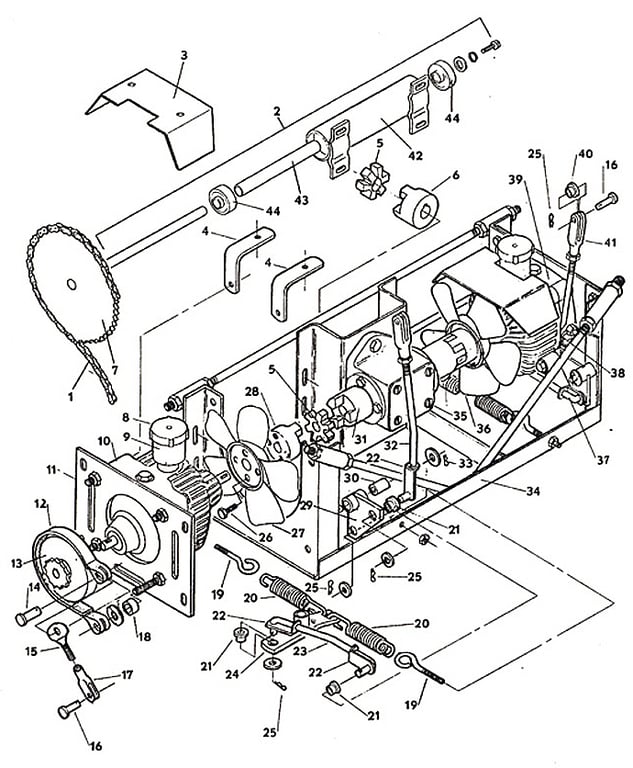

1210 Drive Assembly - 1985
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 385255 - Chain | Add To Cart | |
| 2 | 603455 - Drive Unit Jackshaft Assembly | Call For Details | |
| 3 | 720185 - Fan Shroud | Add To Cart | |
| 4 | 732545 - Bracket | Add To Cart | |
| 5 | 388500 - Coupler Spider | Add To Cart | |
| 6 | 388413 - Coupler | Add To Cart | |
| 7 | 643761 - Threaded Sprocket & Shaft | Add To Cart | |
| 8 | 422001 - Reservoir Cap & Gasket | Add To Cart | |
| 9 | 422005 - Hydro Reservoir | Add To Cart | |
| 10 | 603824 - New Hydro Transmission - Right | Call For Details | |
| 11 | 775255 - Drive Mount Plate | Call For Details | |
| 12 | 481115 - Brake Band Assembly | Add To Cart | |
| 13 | 417515 - Sprocket & Drum Assembly | Add To Cart | |
| 14 | 261340 - Clevis Pin | Add To Cart | |
| 15 | 830018 - Eye Bolt | Add To Cart | |
| 16 | 261284 - Clevis Pin | Add To Cart | |
| 17 | 265538 - Clevis Yoke | Add To Cart | |
| 18 | 902280 - Spacer | Add To Cart | |
| 19 | 240026 - Eye Bolt | Call For Details | |
| 20 | 283822 - Extension Spring | Add To Cart | |
| 21 | 422520 - Nylon Bearing | Add To Cart | |
| 22 | 722012 - Clip Backing | Add To Cart | |
| 23 | 730275 - Steering Linkage Rod | Call For Details | |
| 24 | 643050 - Transmission Control Bottom Arm | Call For Details | |
| 25 | 260520 - Hair Pin | Add To Cart | |
| 26 | 250169 - Screw | Add To Cart | |
| 27 | 320856 - 7 inch counter-clockwise Nylon Fan | Add To Cart | |
| 28 | 831020 - Flex Coupling | Add To Cart | |
| 29 | 643145 - Pivot Bracket | Call For Details | |
| 30 | 422560 - Nylon Bearing | Add To Cart | |
| 31 | 388415 - Coupler | Add To Cart | |
| 32 | 730295 - Threaded Rod | Call For Details | |
| 33 | 260523 - Hair Pin | Add To Cart | |
| 34 | 643550 - Hydro Drive Mount | Call For Details | |
| 35 | 390220 - Gearbox | Add To Cart | |
| 36 | 320857 - 7 inch clockwise Nylon Fan | Add To Cart | |
| 37 | 730285 - Steering Linkage Rod | Call For Details | |
| 38 | 284205 - Spring | Add To Cart | |
| 39 | 603825 - New Hydro Transmission - Left | Add To Cart | |
| 40 | 422540 - Nylon Bearing | Add To Cart | |
| 41 | 265537 - Clevis Yoke | Add To Cart | |
| 42 | 824535 - Jackshaft Bearing Housing | Add To Cart | |
| 43 | 902413 - Spacer | Add To Cart | |
| 44 | 120063 - Ball Bearing | Add To Cart |
