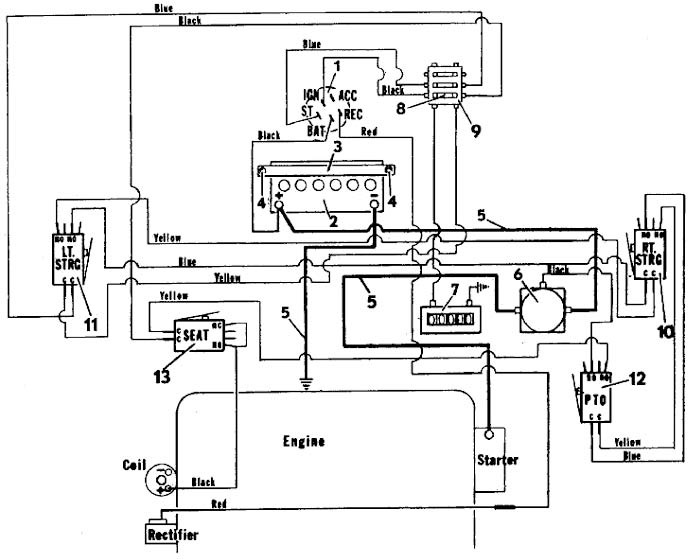

1210 Electrical Wiring - 1985
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183805 - Kohler Key Switch | Add To Cart | |
| 2 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| 3 | 822410 - Battery Hold Down | Add To Cart | |
| 4 | 240110 - Hook Bolt | Add To Cart | |
| 5 | 180319 - 20 Inch Red Battery Cable | Add To Cart | |
| - | 425219 - Starter Terminal Boot | Add To Cart | |
| 6 | 184250 - Solenoid Switch 3-Post Relay | Add To Cart | |
| 7 | 141551 - Snap-In Hour Meter | Add To Cart | |
| - | 722060 - Hour Meter Mounting Bracket | Call For Details | |
| 8 | 181540 - 6 Amp Fuse | Call For Details | |
| 9 | 603135 - Fuse Block | Call For Details | |
| 10 | 183865 - Lever Safety Switch | Add To Cart | |
| - | 722020 - Right Switch Mount | Call For Details | |
| 11 | 183865 - Lever Safety Switch | Add To Cart | |
| - | 722021 - Left Switch Mount | Call For Details | |
| 12 | 183865 - Lever Safety Switch | Add To Cart | |
| 13 | 183865 - Lever Safety Switch | Add To Cart | |
| 14 | 603880 - 1210 Mower Ignition Wire Group | Call For Details | |
| 15 | 161140 - Control Panel Decal | Call For Details |
