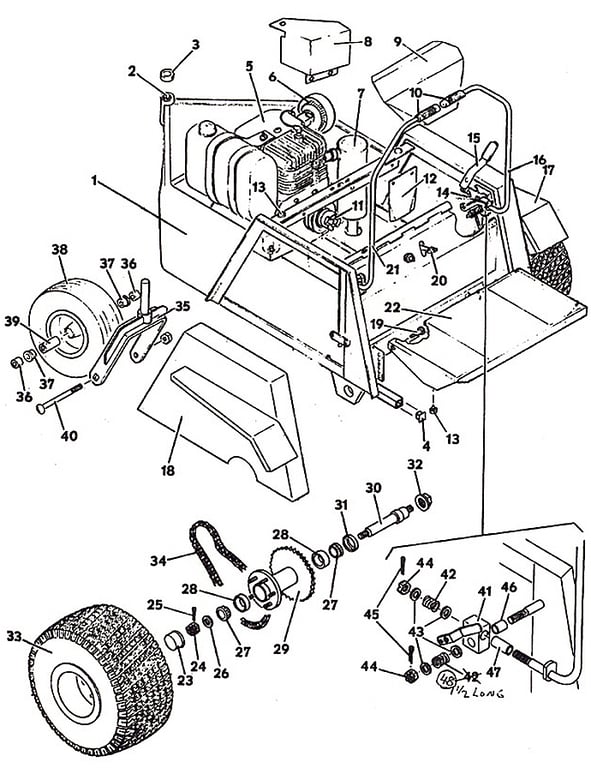

1210 Tractor Assembly - 1985
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643381 - Tractor Frame | Call For Details | |
| 2 | 121590 - Needle Bearing | Add To Cart | |
| 3 | 280440 - Collar Set | Add To Cart | |
| 4 | 422065 - Plug | Add To Cart | |
| 5 | 100110 - 12hp Kohler Engine | Add To Cart | |
| 6 | 100900 - Air Filter | Call For Details | |
| 7 | 101200 - Muffler | Call For Details | |
| 8 | 643745 - Air Deflector Shield | Call For Details | |
| 9 | 722370 - Muffler Heat Shield | Call For Details | |
| 10 | 422160 - Handle Grip | Add To Cart | |
| 11 | 388419 - Coupler | Add To Cart | |
| 12 | 722245 - Lower Muffler Heat Shield | Call For Details | |
| 13 | 424015 - Rubber Bumper | Add To Cart | |
| 14 | 730305 - Brake Linkage Rod | Call For Details | |
| 15 | 643518 - Brake Band Lever | Call For Details | |
| - | 422150 - Handle Grip | Add To Cart | |
| 16 | 643535 - Steering Lever - Left | Call For Details | |
| 17 | 643341 - Fender Extension - Left | Call For Details | |
| 18 | 643340 - Fender Extension - Right | Call For Details | |
| 19 | 259741 - Bolt | Add To Cart | |
| 20 | 142320 - Mechanical Throttle | Add To Cart | |
| 21 | 643534 - Steering Lever - Right | Add To Cart | |
| 22 | 643710 - Foot Rest | Call For Details | |
| 23 | 481432 - Dust Cap | Add To Cart | |
| 24 | 254502 - Nut | Add To Cart | |
| 25 | 260670 - Cotter Pin | Add To Cart | |
| 26 | 257091 - Washer | Add To Cart | |
| 27 | 122522 - Tapered Bearing | Add To Cart | |
| 28 | 123522 - Bearing Cup | Add To Cart | |
| 29 | 603427 - Hub Assembly | Call For Details | |
| 30 | 883155 - Axle | Call For Details | |
| 31 | 125525 - Seal | Add To Cart | |
| 32 | 253100 - Nut | Call For Details | |
| 33 | 483900 - Wheel & Tire - 16 x 7.5 x 8 | Call For Details | |
| - | 482400 - Tire - Turf - 16 x 7.5 x 8 | Call For Details | |
| - | 483400 - Wheel - 8 x 5.375 | Call For Details | |
| - | 483903 - Wheel & Tire - 18 x 8.5 x 8 | Call For Details | |
| - | 482450 - Tire - 18 x 8.5 x 8 | Call For Details | |
| 34 | 385290 - Chain | Add To Cart | |
| - | 388010 - Connecting Link | Add To Cart | |
| 35 | 643368 - Fork | Add To Cart | |
| 36 | 902425 - Axle Spacer | Add To Cart | |
| 37 | 120050 - Bearing | Add To Cart | |
| 38 | 483861 - Wheel & Tire w/Brgs & Spacer - 13 x 5 x 6 | Add To Cart | |
| - | 482350 - Tire - 13 x 5 x 6 | Add To Cart | |
| - | 483301 - Wheel - 6 x 3.25 | Add To Cart | |
| 39 | 902475 - Spacer | Add To Cart | |
| 40 | 247725 - Bolt | Add To Cart | |
| 41 | 643637 - Steering Lever Pivot - Left | Add To Cart | |
| - | 643636 - Steering Lever Pivot - Right | Add To Cart | |
| 42 | 283324 - Compression Spring | Add To Cart | |
| 43 | 257063 - Washer | Add To Cart | |
| 44 | 253470 - Nut w/Nylon Insert | Add To Cart | |
| 45 | 260654 - Cotter Pin | Call For Details | |
| 46 | 422560 - Nylon Bearing | Add To Cart | |
| 47 | 422580 - Nylon Bearing | Add To Cart | |
| 48 | 283325 - Compression Spring | Add To Cart |
