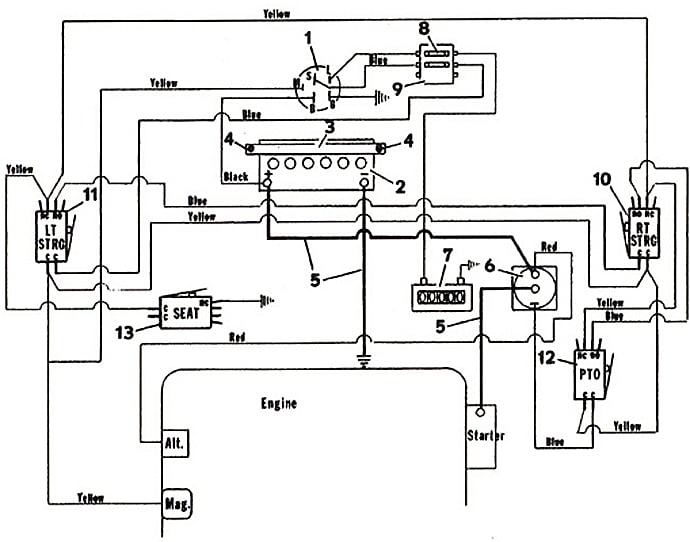

1212 Electrical Wiring - 1987
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 183806 - Briggs & Stratton / Kohler Key Switch | Add To Cart | |
| - | 101101 - Ignition Key with Cover | Add To Cart | |
| - | 254498 - Nut | Add To Cart | |
| - | 422078 - Plastic Panel | Add To Cart | |
| 2 | 180125 - 12 Volt Wet Battery | Add To Cart | |
| 3 | 822410 - Battery Hold Down | Add To Cart | |
| 4 | 240110 - Hook Bolt | Add To Cart | |
| 5 | 180319 - Red Battery Cable | Add To Cart | |
| - | 425219 - Starter Terminal Boot | Add To Cart | |
| 6 | 184250 - 3-Post Solenoid Relay Switch | Add To Cart | |
| 7 | 141551 - Snap-in Hour Meter | Add To Cart | |
| - | 722060 - Hour Meter Mounting Bracket | Call For Details | |
| 8 | 181540 - 6 Amp Fuse | Call For Details | |
| 9 | 603135 - Fuse Block | Call For Details | |
| 10 | 183865 - Safety Switch | Add To Cart | |
| - | 722020 - Switch Mount - Right | Call For Details | |
| 11 | 183865 - Safety Switch | Add To Cart | |
| - | 722021 - Switch Mount - Left | Call For Details | |
| 12 | 183865 - Safety Switch | Add To Cart | |
| 13 | 183865 - Safety Switch | Add To Cart | |
| - | 603790 - Seat Safety Switch & Mount Assembly | Call For Details | |
| - | 724100 - Seat Switch Mount | Call For Details | |
| - | 283322 - Compression Spring | Add To Cart | |
| - | 261328 - Clevis Pin | Call For Details | |
| - | 250318 - Machine Screw | Call For Details | |
| 14 | 603881 - Mag 1210 Wiring Group | Call For Details | |
| 15 | 161131 - Console Decal for Water-Cooled 700 Model | Add To Cart |
