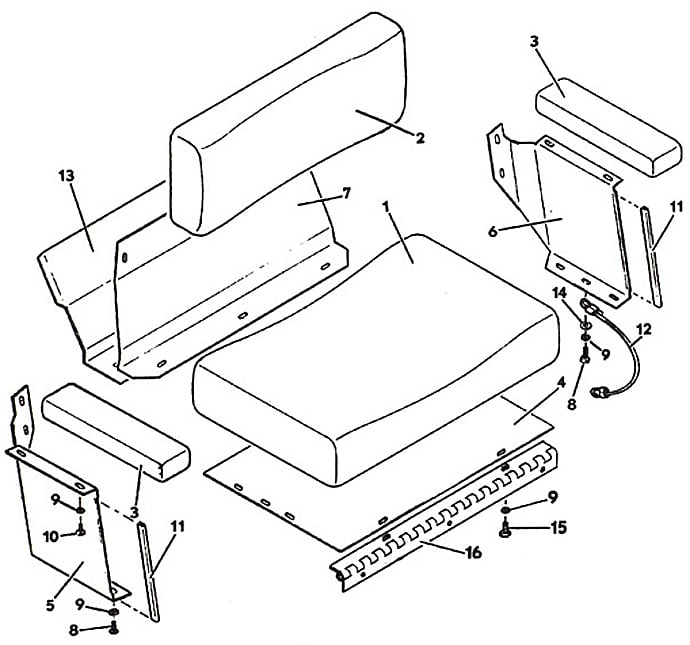

1212 Seat Assembly - 1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321505 - Seat Cushion | Call For Details | |
| 2 | 321504 - Seat Back Cushion | Add To Cart | |
| 3 | 321501 - Seat Armrest | Add To Cart | |
| 4 | 771070 - Bottom Seat Panel | Add To Cart | |
| 5 | 724310 - Right Side Seat Member | Add To Cart | |
| 6 | 724311 - Left Side Seat Member | Add To Cart | |
| 7 | 721280 - Back Seat Panel | Call For Details | |
| 8 | 243205 - Screw | Add To Cart | |
| 9 | 257410 - Washer | Add To Cart | |
| 10 | 243195 - Bolt | Add To Cart | |
| 11 | 822630 - Seat Edge Trim | Add To Cart | |
| 12 | 603210 - Seat Cable | Add To Cart | |
| 13 | 722460 - Air Deflector | Call For Details | |
| 14 | 257030 - Washer | Add To Cart | |
| 15 | 243210 - Bolt | Add To Cart | |
| 16 | 820165 - Seat Hinge | Add To Cart | |
| 17 | 603761 - 21 inch Seat Assembly | Call For Details |
