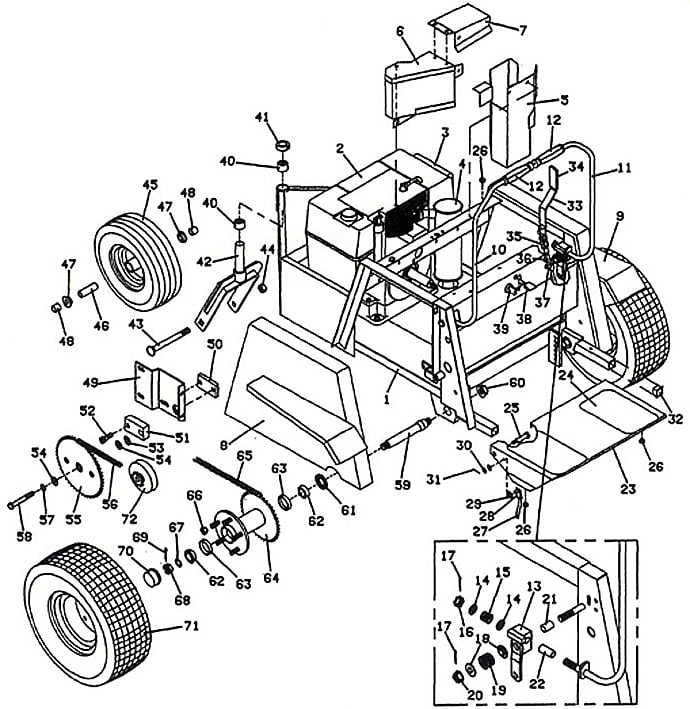

1212 Tractor Assembly - 1990
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643381 - Tractor Frame | Call For Details | |
| 2 | 100111 - 12hp Kohler Engine | Call For Details | |
| 3 | 100910 - Kohler Air Filter | Call For Details | |
| - | 100915 - Kohler Air Filter Pre Cleaner | Call For Details | |
| 4 | 101200 - Kohler Muffler | Call For Details | |
| 5 | 643617 - Muffler Shield | Call For Details | |
| 6 | 643035 - Air Deflector | Call For Details | |
| 7 | 721128 - Air Deflector | Call For Details | |
| 8 | 643340 - Right Extended Fender | Call For Details | |
| 9 | 643341 - Left Extended Fender | Call For Details | |
| 10 | 643534 - Right Steering Lever | Add To Cart | |
| 11 | 643535 - Left Steering Lever | Call For Details | |
| 12 | 422160 - Handle Grip | Add To Cart | |
| 13 | 643643 - Right Steering Lever Pivot | Call For Details | |
| - | 643644 - Left Steering Lever Pivot | Add To Cart | |
| 14 | 257064 - Washer | Call For Details | |
| 15 | 283324 - Compression Spring | Add To Cart | |
| 16 | 253470 - Nut wwith Nylon Insert | Add To Cart | |
| 17 | 260652 - Cotter Pin | Add To Cart | |
| 18 | 257067 - Washer | Add To Cart | |
| 19 | 283381 - Compression Spring | Add To Cart | |
| 20 | 830355 - Nut | Call For Details | |
| 21 | 422560 - Nylon Bearing | Add To Cart | |
| 22 | 422580 - Nylon Bearing | Add To Cart | |
| 23 | 643710 - Foot Rest | Call For Details | |
| 24 | 420902 - Foot Rest Tread | Add To Cart | |
| 25 | 259741 - Shoulder Bolt | Add To Cart | |
| 26 | 424015 - Rubber Bumper | Add To Cart | |
| 27 | 730350 - Foot Rest Lift Rod | Call For Details | |
| 28 | 722012 - Clip Backing | Add To Cart | |
| 29 | 257030 - Washer | Add To Cart | |
| 30 | 257020 - Washer | Add To Cart | |
| 31 | 260648 - Cotter Pin | Add To Cart | |
| 32 | 422065 - Plug | Add To Cart | |
| 33 | 643518 - Brake Lever | Call For Details | |
| 34 | 422150 - Handle Grip | Add To Cart | |
| 35 | 265537 - Clevis Yoke | Add To Cart | |
| 36 | 730292 - Brake Linkage Rod | Call For Details | |
| 37 | 142225 - Mechanical Choke | Add To Cart | |
| 38 | 142311 - Mechanical Throttle | Add To Cart | |
| 39 | 183806 - Ignition Switch | Add To Cart | |
| 40 | 121590 - Needle Bearing | Add To Cart | |
| 41 | 280440 - Set Collar | Add To Cart | |
| 42 | 643368 - Solid Shank Rear Fork | Add To Cart | |
| 43 | 247725 - Carriage Bolt | Add To Cart | |
| 44 | 253970 - Lock Nut | Add To Cart | |
| 45 | 483861 - Wheel & Tire with Bearings & Spacer - 13 x 5 x 6 | Add To Cart | |
| - | 482350 - Tubeless Ribbed Tire - 13 x 5 x 6 | Add To Cart | |
| - | 483301 - Wheel with Bearings & Spacer - 6 x 3.25 | Add To Cart | |
| 46 | 902475 - Rear Wheel Bearing Spacer | Add To Cart | |
| 47 | 120050 - Ball Bearing | Add To Cart | |
| 48 | 902425 - Axle Spacer | Add To Cart | |
| 49 | 643588 - Right 22 Drive Mount | Call For Details | |
| - | 643587 - Left 22 Drive Mount | Add To Cart | |
| 50 | 783528 - Clamp Plate | Call For Details | |
| 51 | 783831 - Cluster Sprocket Mount Block | Add To Cart | |
| 52 | 259636 - Socket Head Screw | Add To Cart | |
| 53 | 770010 - Sprocket Washer | Add To Cart | |
| 54 | 774019 - Sprocket Washer | Add To Cart | |
| 55 | 603800 - Sprocket w/Bearing | Add To Cart | |
| - | 603115 - Bearing Assembly | Add To Cart | |
| 56 | 385264 - Chain | Add To Cart | |
| 57 | 257432 - Lock Washer | Add To Cart | |
| 58 | 245230 - Hex Bolt | Add To Cart | |
| 59 | 883155 - Tapered Mount Axle | Call For Details | |
| 60 | 253100 - Flange-Top Lock Nut | Call For Details | |
| 61 | 125525 - Seal | Add To Cart | |
| 62 | 122522 - Tapered Bearing | Add To Cart | |
| 63 | 123522 - Bearing Cup | Add To Cart | |
| 64 | 603427 - Hub Assembly | Call For Details | |
| 65 | 385288 - Chain | Add To Cart | |
| - | 388010 - Connecting Link | Add To Cart | |
| 66 | 254472 - Lug Nut | Add To Cart | |
| 67 | 257091 - 14 gauge Bushing Washer | Add To Cart | |
| 68 | 254502 - Nut | Add To Cart | |
| 69 | 260670 - Cotter Pin | Add To Cart | |
| 70 | 481432 - Dust Cap | Add To Cart | |
| 71 | 483903 - Wheel & Tire - 18 x 8.5 x 8 | Call For Details | |
| - | 483400 - Wheel - 5 Hole - 8 x 5.375 | Call For Details | |
| 72 | 417515 - Sprocket & Drum Assembly | Add To Cart | |
| - | 603262 - 1212 Decal Set | Call For Details |
