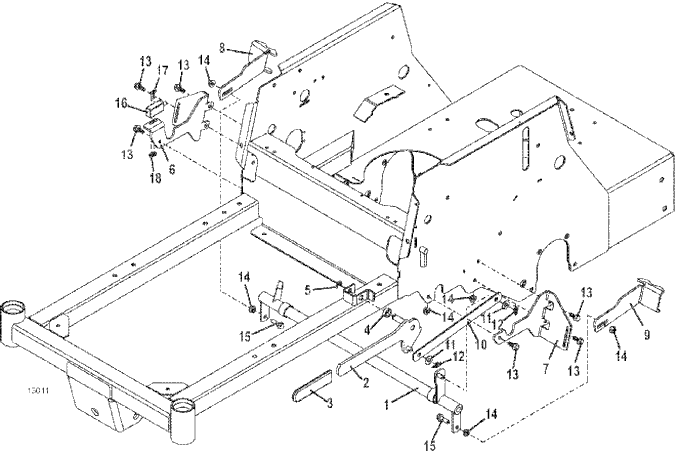

124 Brake & Linkage Assembly for 41 Inch Decks - 2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644647 - M2 Brake Tube | Call For Details | |
| 2 | 645103 - Brake Lever | Call For Details | |
| 3 | 422155 - Handle Grip | Add To Cart | |
| 4 | 902314 - Spacer | Add To Cart | |
| 5 | 263500 - External Retainer | Add To Cart | |
| 6 | 725688 - Bracket | Call For Details | |
| 7 | 725689 - Bracket | Call For Details | |
| 8 | 725666 - Right Brake Arm | Call For Details | |
| 9 | 725667 - Left Brake Arm | Call For Details | |
| 10 | 782331 - Brake Linkage Strap | Call For Details | |
| 11 | 257030 - Washer | Add To Cart | |
| 12 | 260608 - Cotter Ring | Add To Cart | |
| 13 | 253192 - Hex Flange Whiz Bolt | Add To Cart | |
| 14 | 253035 - Whiz Nut | Add To Cart | |
| 15 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 16 | 183894 - Brake Interlock Switch | Add To Cart | |
| 17 | 250258 - Machine Screw | Add To Cart | |
| 18 | 253020 - Whiz Nut | Add To Cart |
