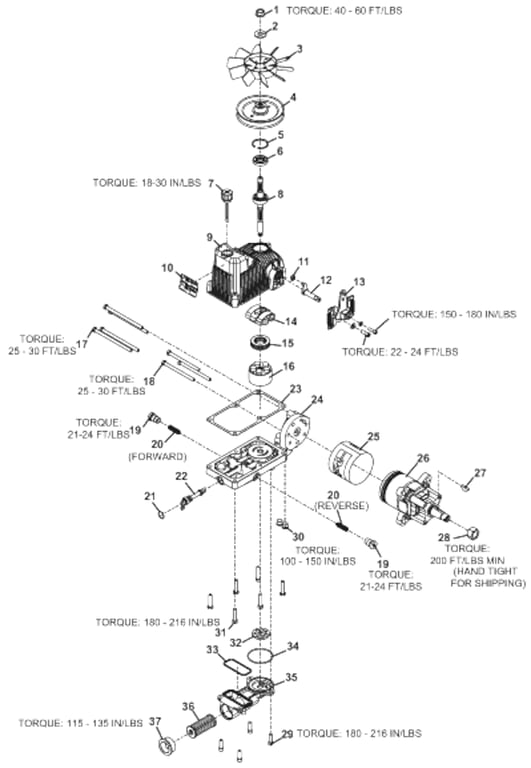

124 HTE Drive Assembly - Serial #6915953 & Above for 48' Deep Decks - 2020
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 253070 - Flanged Nut | Add To Cart | |
| 2 | 130633 - Fan Retainer Washer | Call For Details | |
| 3 | 130431 - Hydro Fan | Add To Cart | |
| 4 | 130631 - Pulley | Add To Cart | |
| 5 | 263180 - Internal Retainer | Add To Cart | |
| 6 | 125365 - Input Seal | Add To Cart | |
| 7 | 130610 - Breather/Dipstick | Add To Cart | |
| - | 130611 - Seal Ring | Add To Cart | |
| 8 | 130678 - Shaft Assembly | Call For Details | |
| 9 | 130660 - Left Top Housing | Call For Details | |
| - | 130661 - Right Top Housing | Call For Details | |
| 10 | NOT AVAILABLE | Unavailable | |
| 11 | 130417 - Control Block | Call For Details | |
| 12 | 130617 - Trunnion Arm | Call For Details | |
| 13 | 130623 - Return Assembly | Call For Details | |
| 14 | 130415 - Swashblock | Call For Details | |
| 15 | 130413 - Thrust Bearing | Add To Cart | |
| 16 | 130452 - Piston & Barrel Assembly | Add To Cart | |
| 17 | NOT AVAILABLE | Unavailable | |
| 18 | NOT AVAILABLE | Unavailable | |
| 19 | 000000 - NOT AVAILABLE | Call For Details | |
| - | 126538 - O-Ring | Add To Cart | |
| 20 | 000000 - NOT AVAILABLE | Call For Details | |
| 21 | 130649 - Retaining Ring | Call For Details | |
| 22 | 130646 - One Piece Bypass Valve | Add To Cart | |
| 23 | 130680 - Housing Gasket | Call For Details | |
| 24 | 000000 - NOT AVAILABLE | Call For Details | |
| 25 | NOT AVAILABLE | Unavailable | |
| 26 | 130388 - Seal Kit | Add To Cart | |
| 27 | 281845 - Woodruff Key | Add To Cart | |
| 28 | 253992 - Lock Nut | Add To Cart | |
| 29 | 000000 - NOT AVAILABLE | Call For Details | |
| 30 | NOT AVAILABLE | Unavailable | |
| 31 | NOT AVAILABLE | Unavailable | |
| 32 | 130428 - Gerotor Set | Call For Details | |
| 33 | 130621 - O-Ring | Add To Cart | |
| 34 | 130620 - O-Ring Charge Cover | Add To Cart | |
| 35 | 130622 - Charge Pump Cover | Add To Cart | |
| 36 | 130605 - Filter | Add To Cart | |
| 37 | 130606 - Filter Plug with O-Ring | Add To Cart | |
| - | 126552 - O-Ring | Add To Cart |
