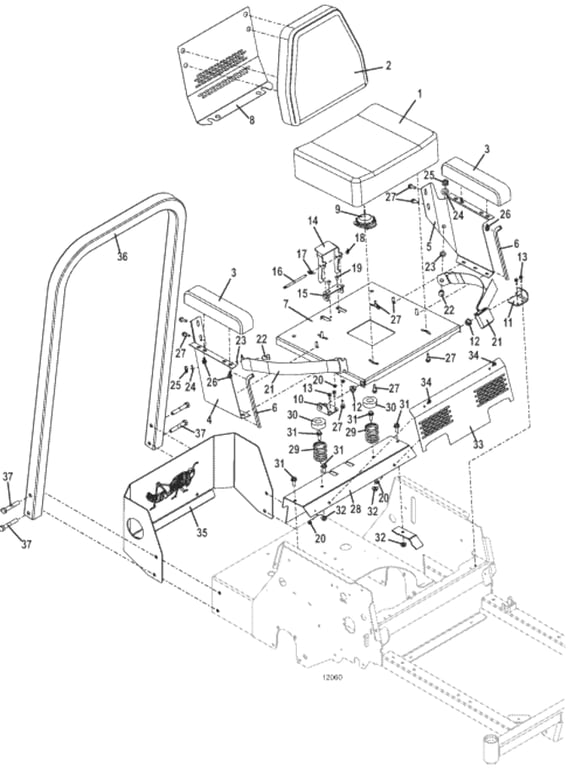

124 Seat Assembly & Ops Tube for 48' Deep Decks - 2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321518 - Cordura Seat Cushion | Add To Cart | |
| 2 | 321519 - Cordura Back Cushion | Add To Cart | |
| 3 | 321523 - Cordura Contoured Armrest | Add To Cart | |
| 4 | 723433 - Raised Backrest Right Seat Side | Add To Cart | |
| 5 | 723434 - Raised Backrest Left Seat Side | Add To Cart | |
| 6 | 822630 - Seat Edge Trim | Add To Cart | |
| 7 | 643898 - 200V Seat Pan | Add To Cart | |
| 8 | 722884 - Seat Rein Raised Backrest | Call For Details | |
| - | 163295 - Med Red/White Grasshopper Emblem Decal | Add To Cart | |
| 9 | 183871 - Twist-In Seat Switch | Add To Cart | |
| 10 | 644401 - Seat Pivot Bracket | Add To Cart | |
| 11 | 644402 - Seat Pivot Bracket | Add To Cart | |
| 12 | 422565 - Sleeve Bearing w/Flange | Add To Cart | |
| 13 | 253175 - Hex Whiz Bolt | Add To Cart | |
| 14 | 724930 - 200V Seat Latch | Call For Details | |
| 15 | 724929 - 200V Seat Latch Mount Bracket | Call For Details | |
| 16 | 730229 - 200V Seat Latch Pivot Pin | Call For Details | |
| 17 | 284408 - Torsion Spring | Add To Cart | |
| 18 | 260606 - Cotter Ring | Add To Cart | |
| 19 | 253176 - Truss Whiz Bolt | Add To Cart | |
| 20 | 253025 - Whiz Nut | Add To Cart | |
| 21 | 324200 - Non-Retractable Seat Belt | Add To Cart | |
| 22 | 243551 - Hex Bolt | Add To Cart | |
| 23 | 257063 - Washer | Add To Cart | |
| 24 | 257062 - Washer | Add To Cart | |
| 25 | 253470 - Nylon Insert Nut | Add To Cart | |
| 26 | 253191 - Hex Flange Whiz Bolt | Add To Cart | |
| 27 | 253193 - Hex Flange Whiz Bolt | Add To Cart | |
| 28 | 729736 - Seat Crossmember | Call For Details | |
| 29 | 283516 - Compression Spring | Add To Cart | |
| 30 | 422127 - Seat Spring Cap | Add To Cart | |
| 31 | 253203 - Flange Whiz Bolt | Add To Cart | |
| 32 | 253043 - Whiz Nut | Add To Cart | |
| 33 | 751042 - Fan Shield | Call For Details | |
| 34 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 35 | 729734 - Rear Guard Shield | Add To Cart | |
| 36 | 324111 - 100 Series Ops Tube | Add To Cart | |
| - | 165092 - Ops/M2 Warning Decal | Call For Details | |
| 37 | 243600 - Hex Bolt | Add To Cart | |
| - | 253930 - Lock Nut | Add To Cart |
